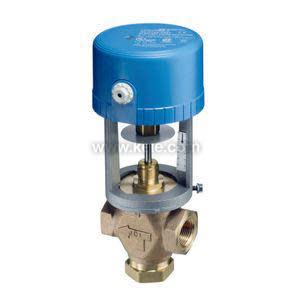

Johnson Controls VG7241ET+7152G 1/2 Inch Globe Valve Assembly with Proportional Electric Actuator

Manufacturer

Part Number

VG7241ET+7152G
Sale Price

$481.72

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Johnson Controls VG7241ET+7152G is a complete globe valve assembly combining the VG7241ET brass trim valve body with the VA-7152-1001 proportional electric actuator. This VG7000 Series globe valve is designed for hot water, chilled water, or steam control in HVAC systems, providing precise modulating control for optimal system performance.

Valve Specifications:

  • 1/2 inch NPT connection, two-way configuration with 1.8 Cv flow coefficient
  • Bronze body construction with stainless steel stem and brass seat for durability
  • Equal percentage flow characteristic providing excellent control
  • Maximum recommended pressure drop of 35 psid for water applications
  • ANSI Class 250 static pressure rating

VA-7152-1001 Actuator Features:

  • Direct-coupled electric actuator with 90 inch-lb torque, non-spring return design
  • Proportional control with 0 to 10 VDC input signal
  • Synchronous motor-driven actuator providing proportional control of valves with up to 3/4 inch stroke
  • Magnetic clutch provides constant output force for positive valve closure and protects motor in stall conditions
  • Compact, non-spring return design with 90 lb force minimum
  • 24 VAC power supply, 50/60 Hz operation
  • 70-second cycle time for full stroke
  • Operating temperature range: 0 to 140°F (-18 to 60°C)

Applications:

  • Hot and chilled water systems
  • Steam control applications
  • Fan coil units and air handling units
  • Building automation systems requiring precise proportional control
  • Heating and cooling system modulation

The unique yoke design allows for easy field mounting and reduces installation and stroke adjustment time. The magnetic clutch maintains constant load at the end of travel to ensure tight valve shutoff and compensate for seat wear. This factory-assembled valve and actuator combination is ready to install, eliminating the need for field assembly and calibration.
