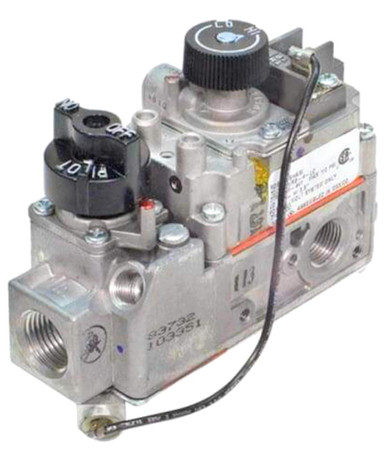

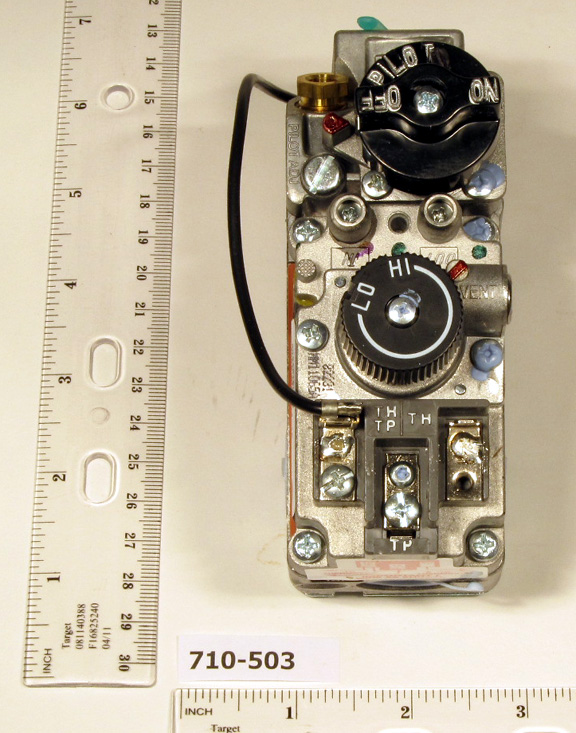

Robertshaw 710-503 Millivolt Low Capacity Gas Valve 1/2" x 3/8" Hi-Lo

The Robertshaw 710-503 is a millivolt, low capacity gas heating valve (gas control valve) with a 1/2" inlet and a 3/8" outlet. It is set up for natural gas. It has a low-profile, compact body for appliances where space is limited.

Key Features:

• Millivolt operation, for thermopile-powered systems only
• 1/2" inlet x 3/8" outlet
• Hi-Lo pressure regulator
• Low-profile body, 3-13/16" H x 4-21/32" L x 1-29/32" W
• Gas cock dial marked Off, Pilot and On
• 1/4" tubing pilot outlet
• Three-position outlets
• Standard NEMA terminals and an inlet filter screen
• Ambient temperature range of -40°F to 175°F
• Can be mounted in any position except upside down

The 710 series regulated valves can be converted from natural gas to LP gas by using the replacement pressure regulators. The valve is designed for recreational vehicles and other applications with limited space.
