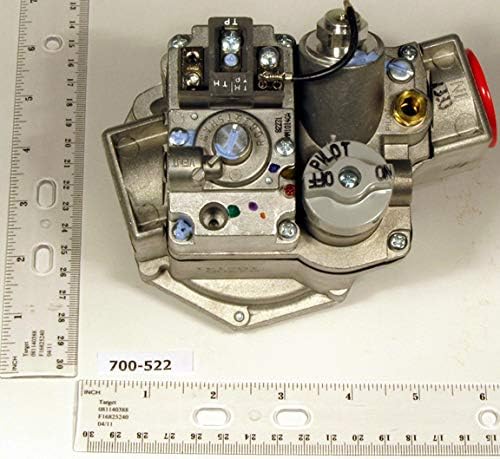

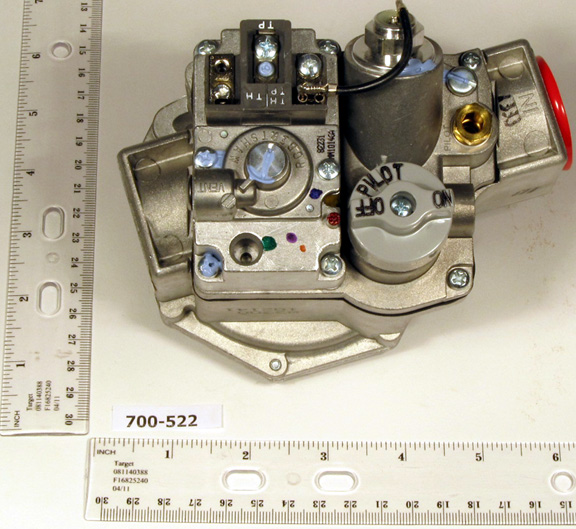

Robertshaw 700-522 1" Millivolt Natural Gas Valve 600,000 BTU with Reducer Bushings

The Robertshaw 700-522 is a wall thermostat actuated combination gas valve that combines a manual gas cock, automatic pilot safety valve, and a millivolt operator. With a capacity of 600,000 BTU, this valve provides efficient and precise control over gas flow. The 1" x 1" configuration includes reducer bushings for enhanced installation versatility across various piping systems.

Key Features:

• Pilot outlet, pilot gas filter, and pilot adjusting key included
• Automatic pilot safety is separate from the gas cock and provides gas shutoff in case of pilot outage
• 1/4" quick connect terminal and 3/16" quick connect terminal on terminal block
• Accepts both types of thermopiles (coaxial or 2-lead)
• Can be mounted in any position except upside down
• Ambient temperature range of -40°F to 175°F
• Maximum inlet pressure 14" WC (0.5 PSI)
• Factory Part Number: 7000MVRHC-S

This valve provides installation flexibility from furnaces to swimming pool applications, making it ideal for commercial water heating, industrial heating systems, HVAC equipment, and gas-fired appliances. Requires between 250 and 750 millivolts to operate.
