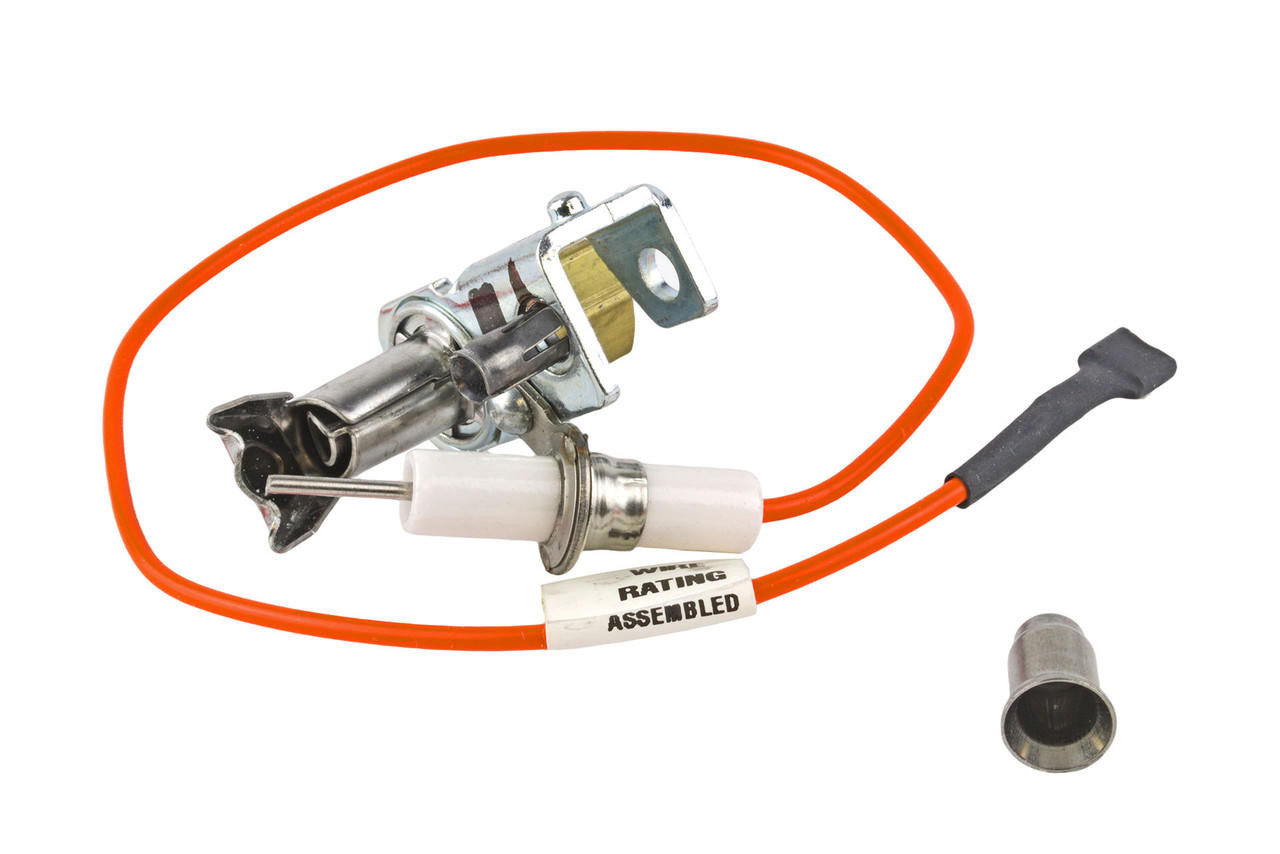

Robertshaw 1830-702 Pilot Electrode Assembly 2S-2 13 Inch Lead

The Robertshaw 1830-702 is a 13-inch pilot electrode assembly from the 1830-700 Series Pilot Uni-Kits, designed for use with OEM-style pilot ignition systems. The electrode is permanently riveted to the pilot frame with a spark gap fixed at 1/8 inch, providing consistent and reliable ignition performance for residential and commercial heating applications.

Key Features:

• 13-inch lead length with fixed 1/8-inch spark gap
• Includes natural gas orifice pre-installed plus separate LP gas orifice, pilot tubing size is 1/4 inch
• Standard flame pattern for optimal combustion
• Aerated type pilot design with non-linting characteristics and no air shutters requiring adjustment
• Bracket dimensions: 1-5/16 inch length, 11/16 inch width, 11/16 inch height

This pilot assembly can be used to replace existing pilot assemblies or for retrofitting standing pilot applications when an exact replacement is desired. The 2S-2 design ensures reliable flame sensing and long-lasting performance in furnaces, boilers, and water heaters. Commonly used in Rheem equipment and other compatible HVAC systems.
