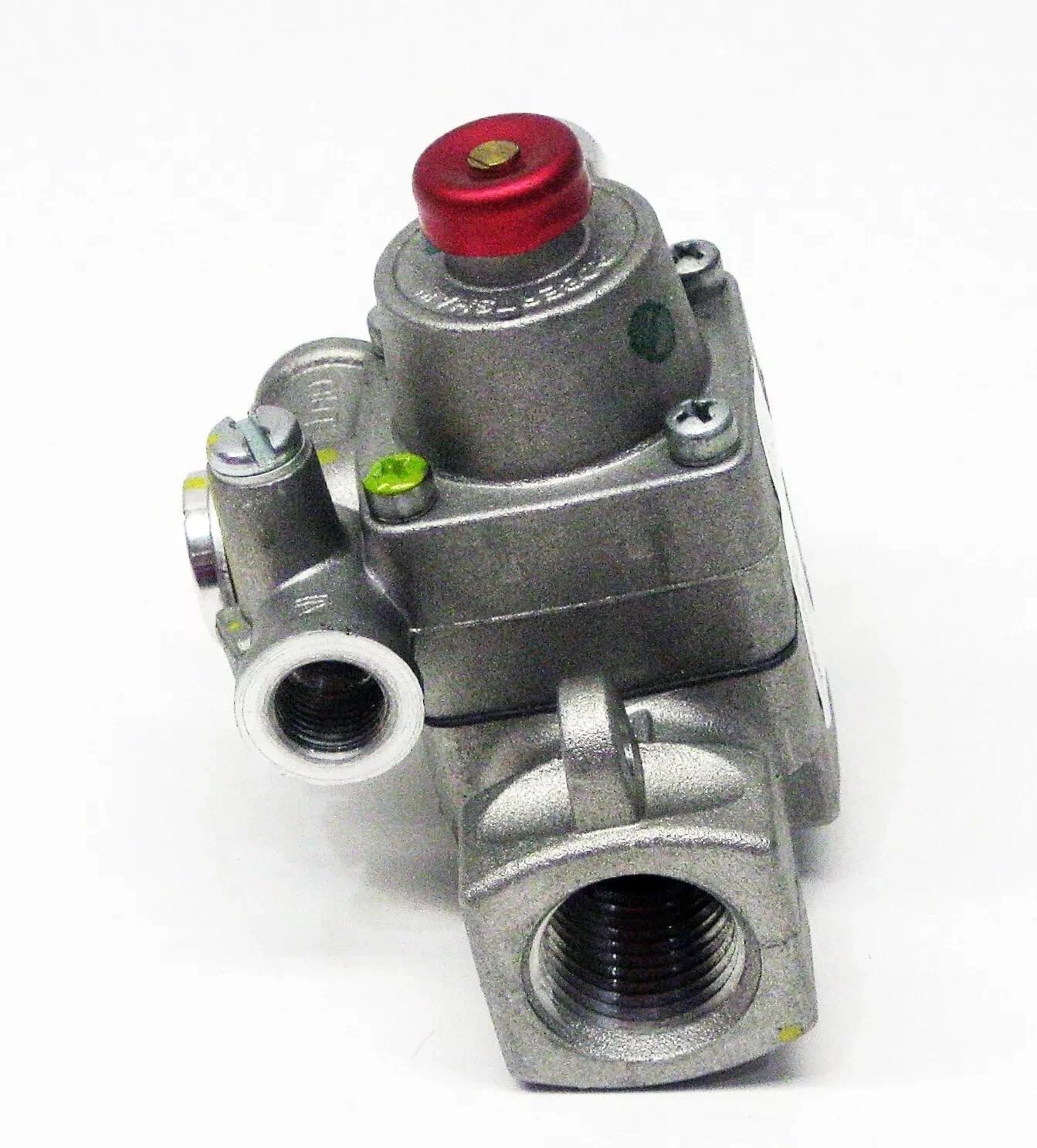

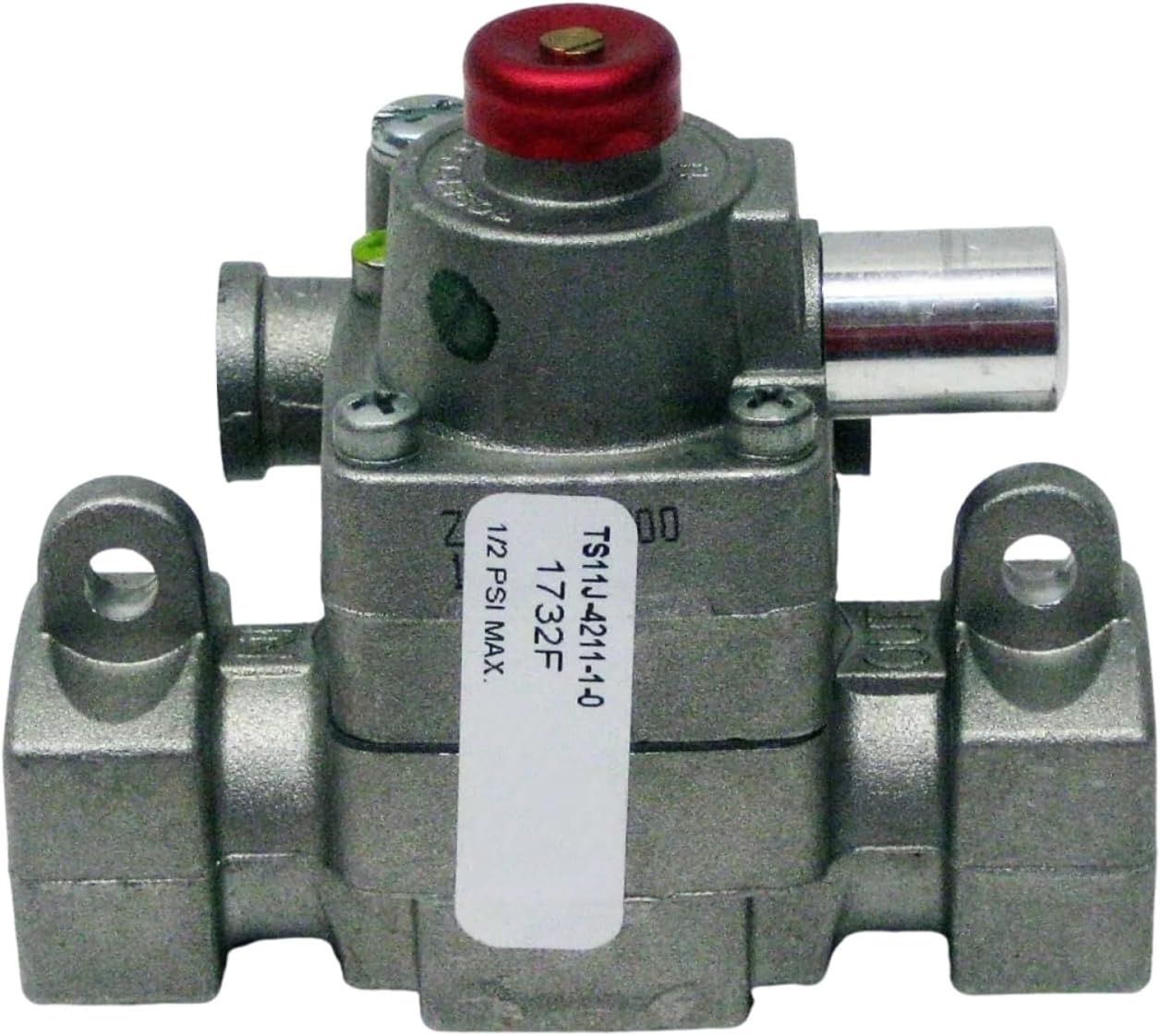

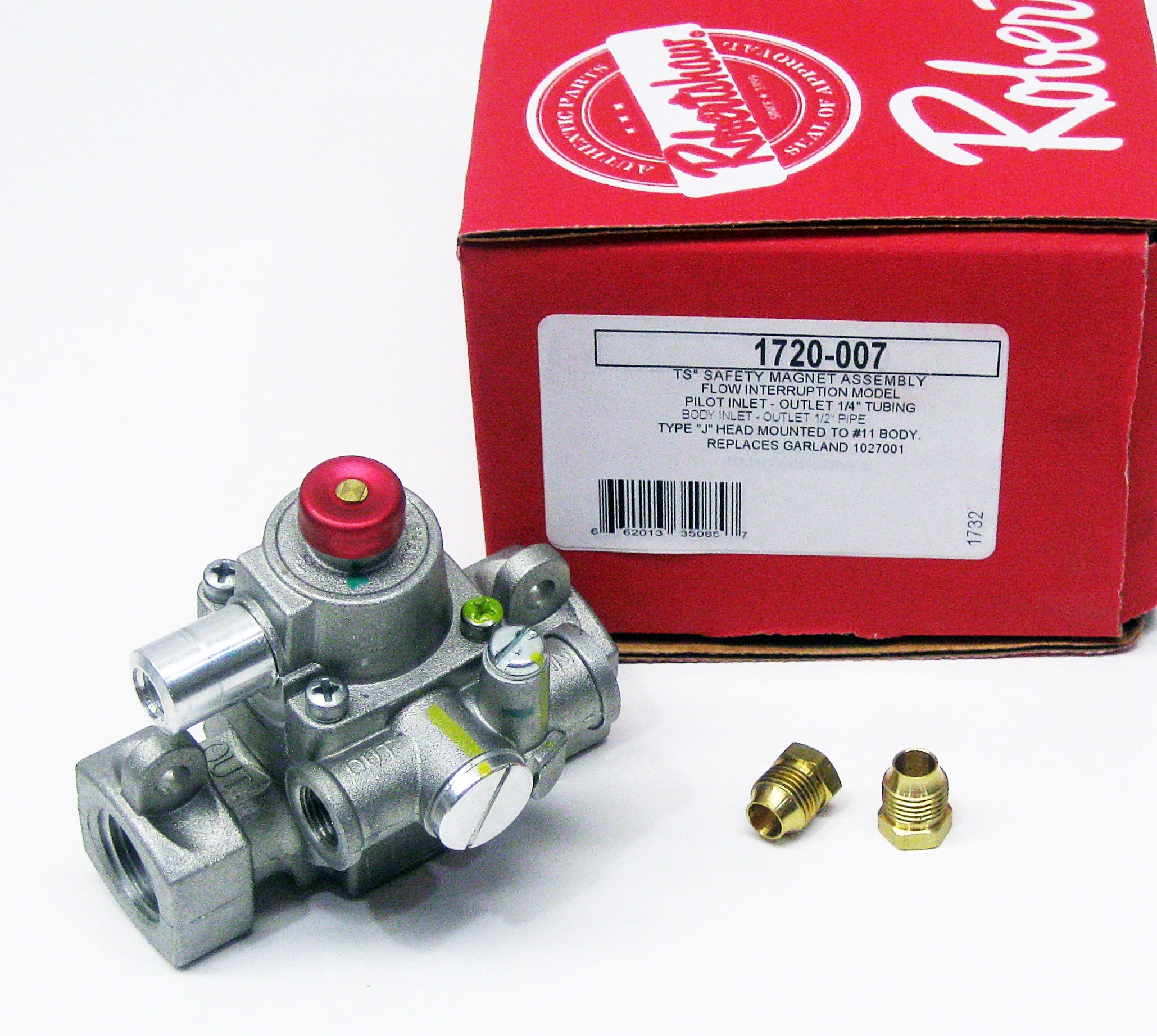

Robertshaw 1720-007 TS11J Thermomagnetic Safety Valve 1/2" NPT Complete Magnet & Body Assembly

The Robertshaw 1720-007 is a complete magnet and body assembly for the 1720 Series Thermomagnetic Safety Valve, a control used to cut off the flow of gas to the burner in the event of a pilot outage. This TS11J model features 1/2" female threaded inlet and outlet connections with 0.5 PSI maximum pressure rating.

How It Works:

The magnet assembly is energized by voltage generated by a thermocouple that is heated by the pilot flame. When this flame is extinguished, the thermocouple voltage decreases until a spring overcomes the magnetic force and closes off both the pilot and main gas.

Key Features:

• Complete magnet and body assembly with 1/2" x 1/2" female threaded connections
• Ambient temperature rating: 32°F to 300°F (0°C to 149°C)
• J model available with separate pilot inlet/outlet tube connections
• 1/4" tube pilot inlet/outlet connections
• CSA certified for Canada and US applications
• RoHS compliant construction

Common Applications:

This control can be used for commercial and residential ovens, infrared heaters, chicken and pig brooders, recreational vehicle gas appliances and many more applications requiring automatic safety valves. The TS11J is compatible with commercial cooking equipment and works with other Robertshaw thermostat models including BJWA, FD, and GS series.

Cross-Reference Numbers:

This assembly replaces or cross-references to part numbers: 1027001, CK1027001, 1164037, 149452, 144643, 227120, G01919-01, and others. OEM part number 1027001 is commonly referenced for this complete assembly.
