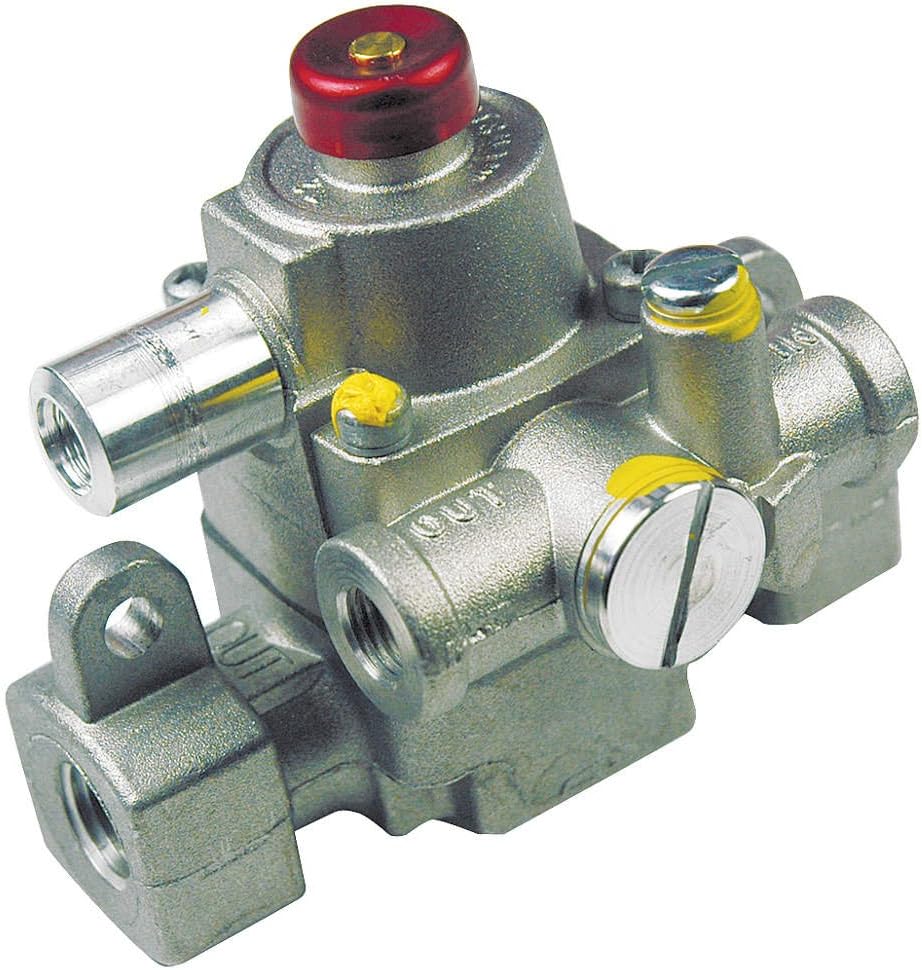

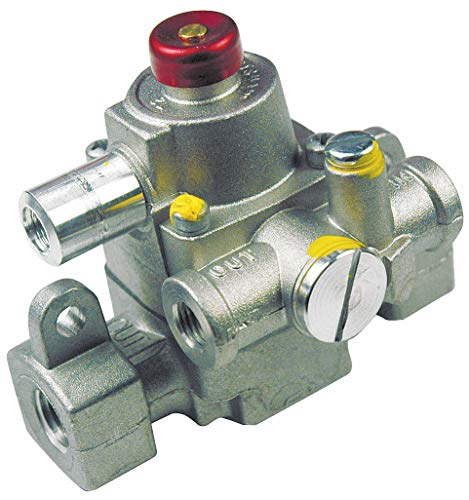

Robertshaw 1720-005 Thermomagnetic Gas Safety Valve NPT - 1/4

The Robertshaw 1720-005 is a thermomagnetic safety valve designed to automatically cut off gas flow to the burner in the event of pilot flame failure. The magnet assembly is energized by voltage generated by a thermocouple heated by the pilot flame, and when the flame extinguishes, the valve automatically closes to prevent dangerous gas leaks.

Key Features:

• 1/4" NPT pipe connections for body inlet and outlet
• 3/16" tube connections for separate pilot inlet/outlet (TS11J model)
• 300°F (149°C) ambient temperature rated
• Complete magnet and body assembly
• Compatible with BJWA, FD, and GS Series Thermostats
• Suitable for liquid propane and natural gas applications

Applications:

This control can be used for commercial and residential ovens, infrared heaters, chicken and pig brooders, recreational vehicle gas appliances and many more applications requiring automatic safety valves. The thermomagnetic design provides reliable flame supervision and safety shutoff protection for gas-fired equipment.
