Fireye MED2 Optional Daughter Board Module with Display Output

The Fireye MED2 is an optional plug-in daughter board module for the MicroM flame safeguard control system, featuring a standard local reset switch with display output. This module is the same as the MED1 with the addition of display output capability, allowing for enhanced monitoring and diagnostics of burner management systems.

Key Features:

• Plug-in daughter board module for MicroM chassis systems
• Integrated local reset switch for convenient manual control
• Display output connection for alphanumeric display (ED510) integration
• Compatible with MicroM flame safeguard control systems
• Enhances diagnostic capabilities for commercial and industrial burners

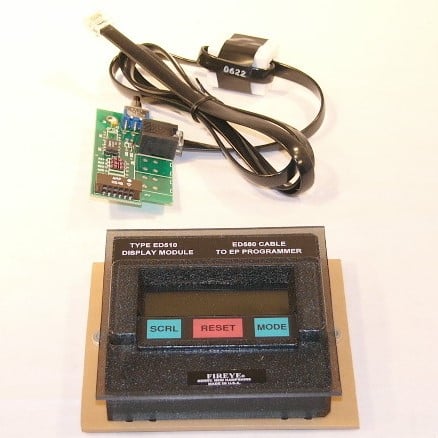

The MED2 is commonly used as part of serviceman's display kits, consisting of an ED510 alphanumeric display, the MED2 daughter board, and connection cable. This optional plug-in board enables access to operational and historical information including burner hours, cycle counts, system hours, and lockout history. Designed for commercial and industrial heating applications, the MED2 module provides essential interface capabilities for monitoring and troubleshooting MicroM burner management systems.

Application: This daughter board is used with Fireye MicroM series flame safeguard controls for commercial heating equipment, process burners, and industrial combustion systems requiring display output and local reset functionality.
