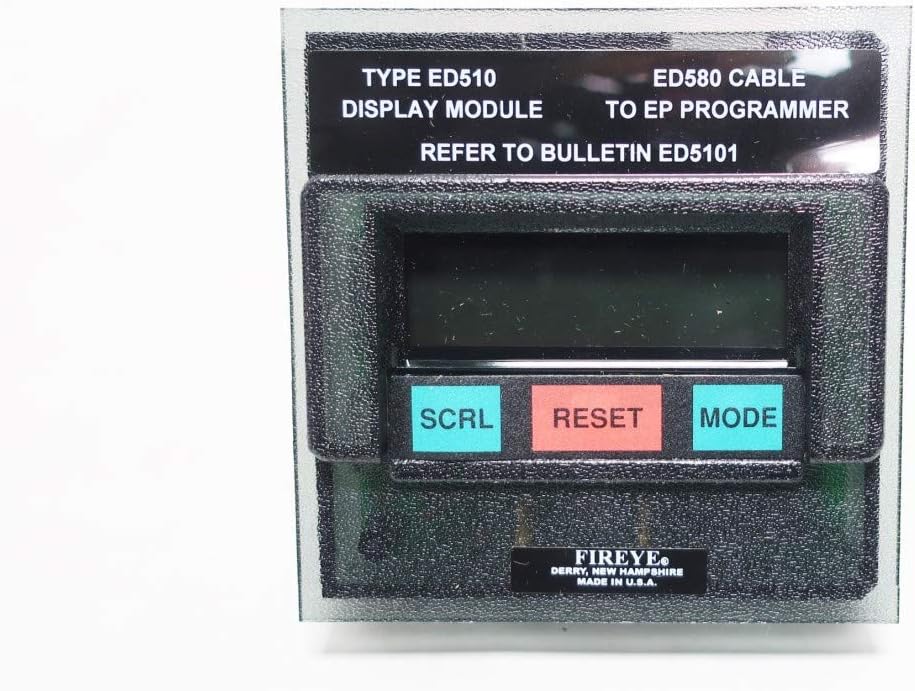

Fireye ED510 LCD Display Module with Keypad for Flame-Monitor Burner Control

The Fireye ED510 Display Module is engineered to integrate seamlessly with the Flame-Monitor Burner Management Control System. This display module is compatible with EP and EPD style programmer modules (remote mount only for EPD style) as well as the MicroM series of controls, providing essential real-time monitoring and diagnostic capabilities for commercial and industrial burner applications.

Key Features:

• Two-line by sixteen-character backlit LCD display for clear visibility in all lighting conditions
• Three-key tactile dome keypad for easy navigation and system control
• Continuous display of current burner operating status with first-out annunciation for lockout conditions
• Historical information access including the last six lockout conditions with burner cycle and hour timestamps
• Diagnostic message display and E300 expansion module message assignment capability
• RJ-style connector for straightforward connection to EP and EPD programmers
• Direct mounting design that attaches to the front face of EP style programmer modules
• Remote display capability with standard DIN-sized opening when used with remote mounting kit

This display module serves as a replacement for the discontinued ED500 model and includes the connection cable. Operating temperature range is -40°F to 140°F (-40°C to 60°C). The ED510 is required when using EP style programmer modules and optional when using EPD style programmer modules.
