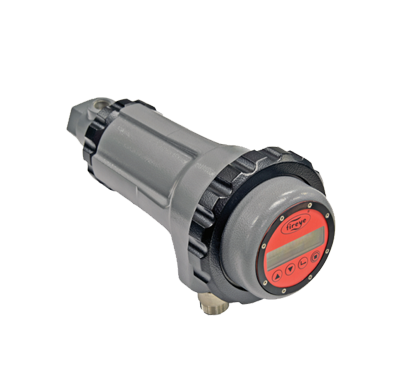

Fireye 95DSS3-1WINC InSight II Dual UV/IR Flame Scanner with Quick Disconnect

The Fireye 95DSS3-1WINC InSight II is a microprocessor-based integrated flame scanner featuring dual sensor technology with both solid-state infrared (IR) and ultraviolet (UV) detection capabilities. This advanced flame monitoring system is designed for industrial burner applications where reliable flame detection and discrimination are critical for safety and operational efficiency.

Key Features:

• Dual UV and IR sensors provide superior flame detection and discrimination from adjacent flames in shared combustion chambers
• Single 12-pin quick disconnect connector for retrofit compatibility with InSight I cable assemblies (such as 59-497 series)
• Two independently adjustable flame relays (SPDT) with configurable ON/OFF thresholds—can operate from UV sensor, IR sensor, or both
• Integrated fault relay (SPST, N.O.) for enhanced safety monitoring
• Two 4-20 mA analog signal strength outputs (one for each flame relay) eliminate the need for remote flame amplifiers
• 21 selectable modulation frequency options for optimal flame flicker detection
• Four programmable memory files for different fuels or firing rates with Auto Config capability
• 24 VDC power input with electronic self-checking diagnostics
• NEMA 4X, FM, UL/c, and CE approved for industrial applications
• SIL-3 certified for high safety integrity level applications

This model is specifically designed for backward compatibility with existing InSight I installations, making it ideal for system upgrades. The unit requires either a 95DISP-1 alphanumeric display or 95WIDISP-2 wireless infrared transmitter (ordered separately) for programming and parameter viewing. Optional Fireye Explorer PC software (CU-109) enables remote communication and advanced configuration capabilities.
