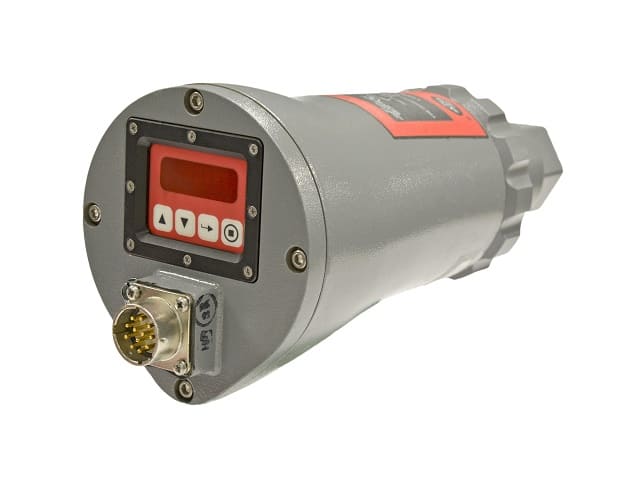

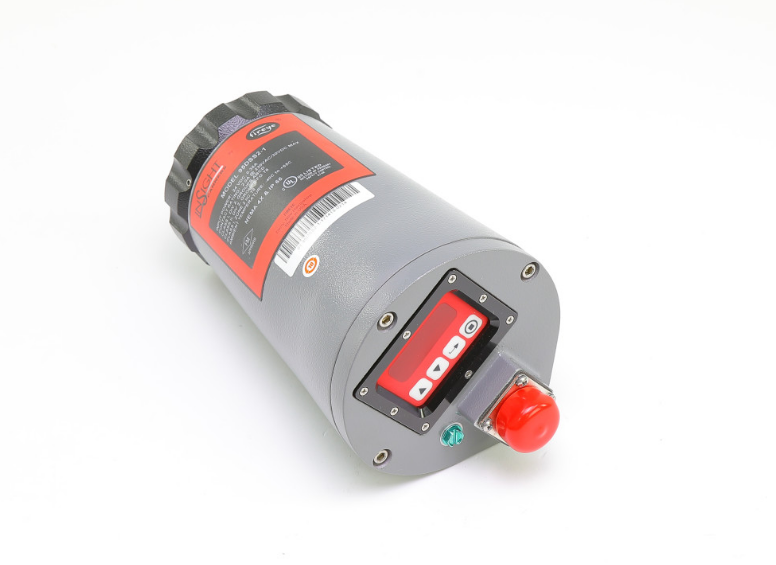

Fireye 95DSS2-1 Enhanced InSight Dual IR/UV Flame Scanner with Quick Disconnect

The Fireye 95DSS2-1 is an Enhanced Model InSight flame scanner featuring advanced dual detection technology with both infrared (IR) and ultraviolet (UV) solid-state sensors for superior flame monitoring reliability. This microprocessor-based scanner is designed for industrial combustion applications including boilers, furnaces, gas turbines, and incinerators where precise flame detection is critical for safety and efficiency.

Key Features:

• Dual IR and UV sensors provide redundant flame detection for maximum safety
• AutoTune automatic programming with manual override capability for easy setup
• 21 selectable flame flicker frequency choices for optimal flame discrimination
• Four programmable files to store setpoints for different fuels or firing rates
• Internal flame relay with adjustable ON/OFF thresholds eliminates need for remote amplifier
• Eight-character alphanumeric LED display with four-button keypad for viewing parameters
• 4-20 mA analog signal strength output for remote monitoring
• Electronic self-checking (no mechanical shutter required)
• 12-pin electrical quick disconnect for easy installation and serviceability
• Remote communication capability via Fireye Windows software
• 24 Vdc power supply

This scanner measures flame flicker amplitude to detect the presence or absence of target flames in single or multi-burner applications. The S2 Enhanced Model provides expanded features compared to standard models, making it ideal for demanding industrial environments. FM and UL/c approved. NEMA 4X, IP66 rated cast aluminum housing with gray polyester powder coat finish withstands harsh conditions. Replacement for legacy Fireye Type 45FS1, 45UVFS1, and 45RM4 scanners.
