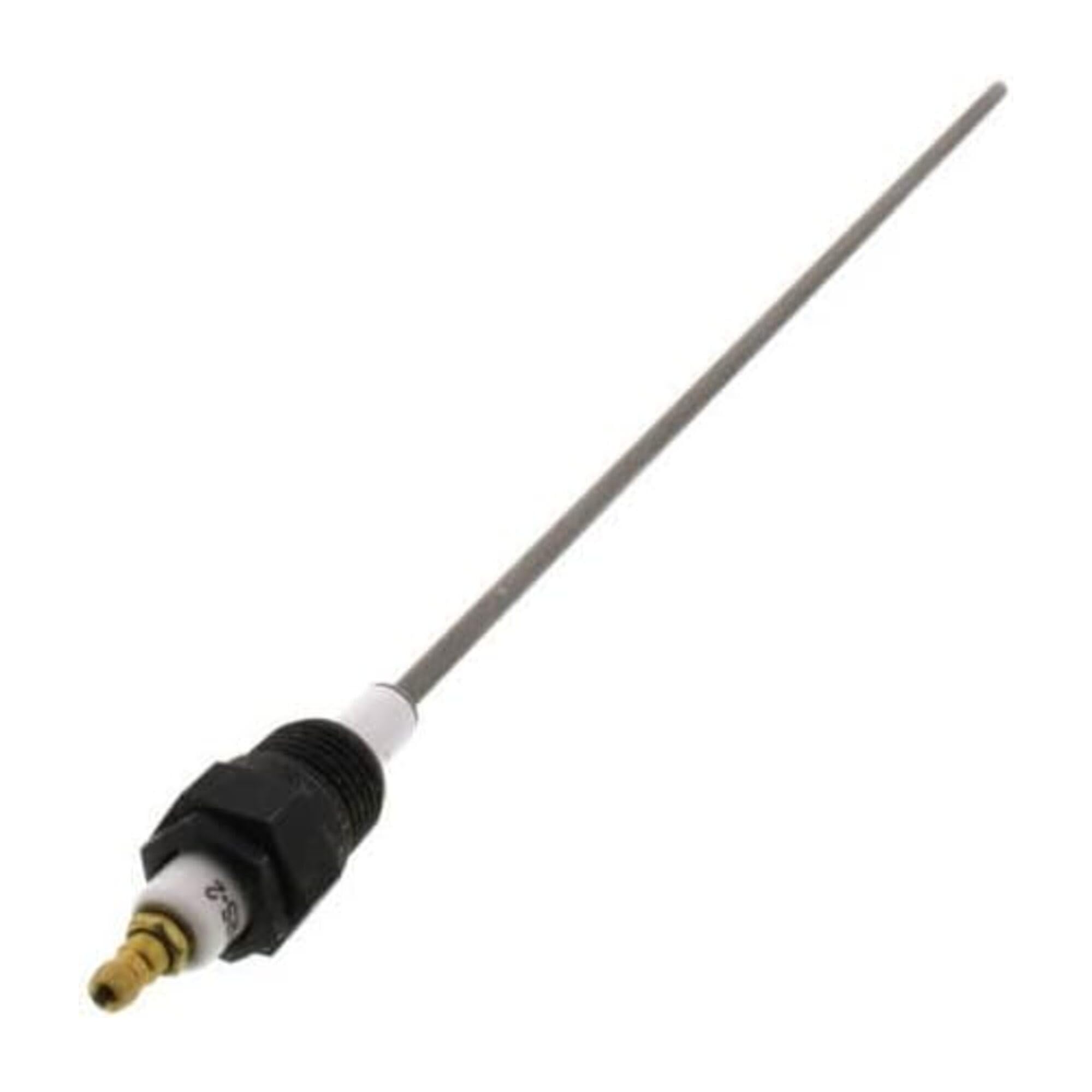

Fireye 69ND1-1000K4 Ionization Flame Rod 12 Inch 1/2 NPT Mount

The Fireye 69ND1-1000K4 is an essential ionization flame rod designed for gas flame detection in high-temperature industrial environments. Constructed from durable high-temperature resistant metal, this flame rod is built to perform reliably in demanding applications where accurate flame detection is crucial.

Key Specifications:

• 12-inch (305mm) length for versatile installation
• 1/2-inch NPT threaded mount
• Maximum tip temperature: 2460°F (1355°C)
• Ambient temperature range: -40°F to 140°F (-40°C to 60°C)
• Operating voltage: 7-15 VDC
• Typical resistance: 20K – 80K ohms

Features & Benefits:

• Specifically designed for detecting gas flames and compatible with various infrared flame detectors and scanners
• Operates by passing a small electrical current through the rod; when heated by flame, it conducts electricity and signals the control system
• Robust construction engineered to withstand harsh conditions in flame detection systems
• Requires minimal maintenance

System Compatibility:

Compatible with P-Series, C & D Series, MicroM, FLAME-MONITOR, and BurnerLogix control systems, providing flexible integration into industrial flame detection setups. Designed for use with C-, D-, and M-Series controls.

Cross Reference: Auburn P/N FRS-1-12
