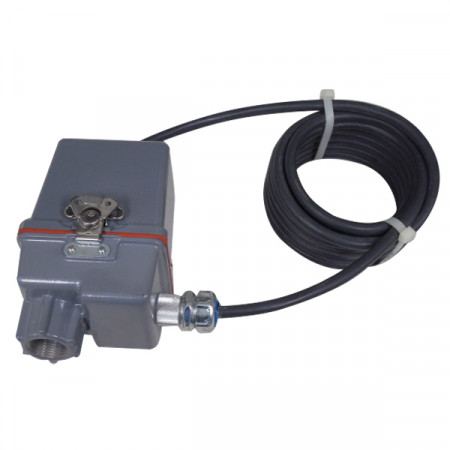

Fireye 55UV5-1009 UV Self-Check Flame Scanner 1" NPT NEMA 4X

Manufacturer

Part Number

55UV5-1009
Black Friday Price

$2,388.42

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Fireye 55UV5-1009 is a self-checking ultraviolet flame scanner designed for detecting UV emissions from fossil fuel flames in commercial and industrial combustion applications. This scanner is engineered for continuously fired applications where recycling is infrequent or absent, providing reliable flame detection for single burner boilers, process ovens, and heaters.

UV-Eye Detection Technology:

The 55UV5 utilizes a sealed, gas-filled UV-sensitive tube containing two electrodes connected to an AC voltage source. When ultraviolet radiation from a flame strikes the electrodes, electrons are released and the inter-electrode gas becomes conductive, producing current pulses known as "avalanches." The presence or absence of these pulses indicates flame presence or absence, while pulse frequency measures flame intensity. The scanner includes an electromagnetic shutter mechanism that enables self-checking functionality to verify proper operation of the ultraviolet tube and signal circuits.

Key Features:

  • Detects UV emissions from natural gas, propane, methane, butane, kerosene, light petroleum distillates, and diesel fuels
  • Cast aluminum NEMA 4X, IP66 rated housing with oil-resistant gasket for harsh environments
  • Plano-convex quartz lens design for increased sensitivity
  • 1" NPT mounting with 3/4" NPT purge hole
  • Includes 20 feet of five-conductor cable with liquid-tight connector
  • Wide voltage compatibility: 102-260 VAC, 50/60 Hz at 0.02 Amp
  • Replaceable UV tube (part 4-314-1) and shutter mechanism (part 61-7075-1)

Hazardous Location Certifications:

Suitable for use in Class I, Division 2, Groups A, B, C, D and Class II, Division 2, Groups F and G hazardous locations, making it ideal for industrial environments where flammable gases or vapors may be present.

Compatible Control Systems:

Works exclusively with Fireye BurnerLogix, Flame-Monitor, D-Series, FlameWorx, and MicroM control models to provide complete flame safeguard and monitoring systems for supervised manual, semi-automatic, and fully automatic burner applications.
