Lau 38243420M Belt Drive Blower Assembly A12-12ACE 12 Inch Wheel

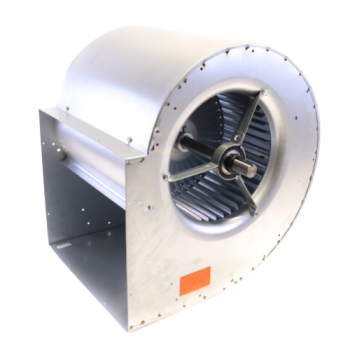

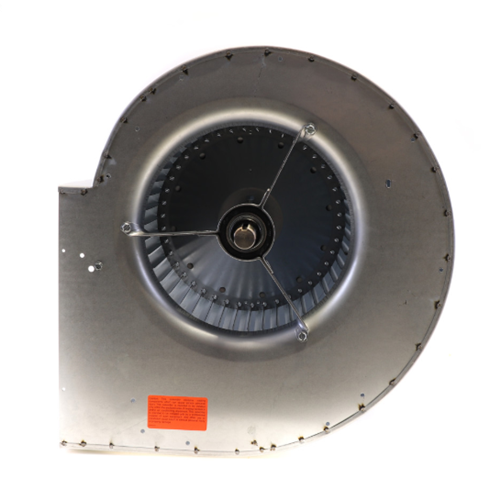

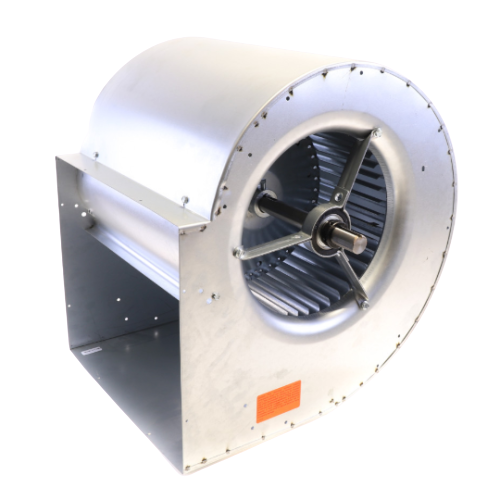

The Lau 38243420M is a complete belt drive blower assembly designed for residential and light commercial HVAC applications. This heavy-duty assembly features a 12-inch x 12-inch double inlet blower wheel (model A12-12ACE) with precision-ground 1-inch shaft and universal housing that provides versatile installation options.

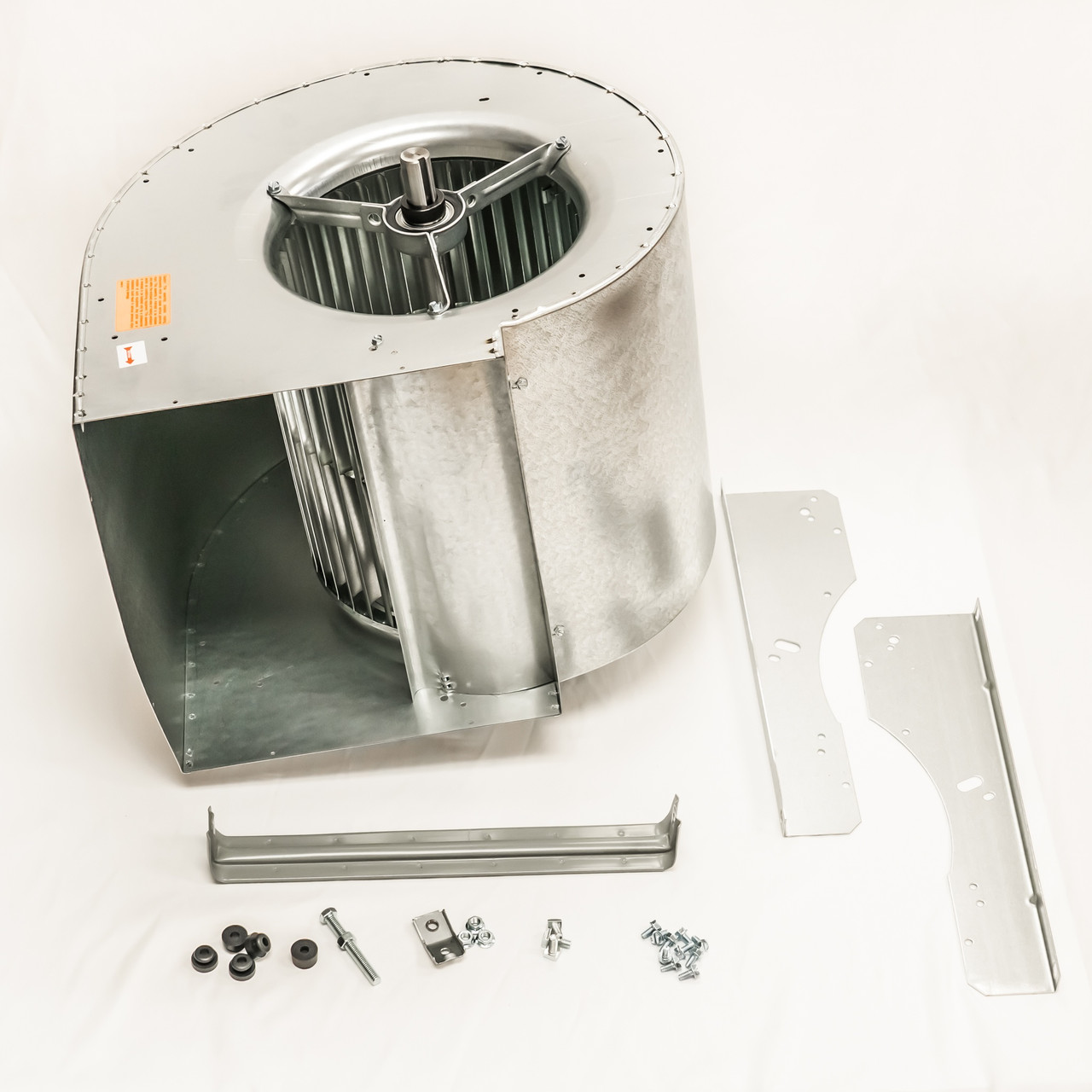

Complete Assembly Includes:

• Heavy gauge steel blower housing with universal support configuration
• 12" x 12" double inlet blower wheel (A12-12ACE)
• Precision ground 1-inch diameter shaft with keyways and flats for compatibility with various drives and motor horsepower ratings
• Vibro-pads for vibration dampening and noise reduction

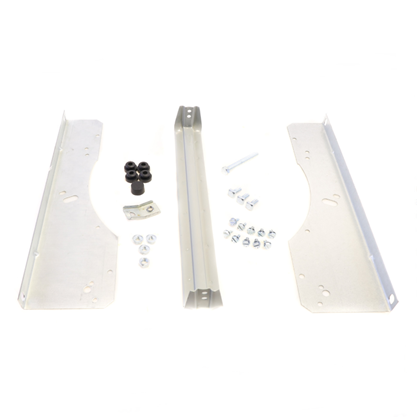

• Universal housing supports allowing installation in all four standard discharge positions
• Mounting hardware for secure installation

Key Specifications:

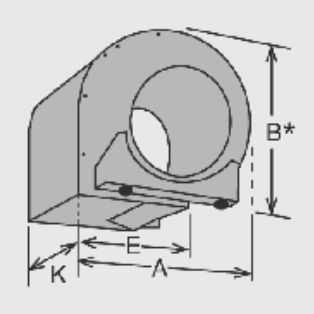

• Housing dimension K: 15-3/4 inches
• Housing dimension E: 13-7/16 inches
• Overall dimension A: 20-7/16 inches
• Overall dimension B: 19-5/16 inches
• Shaft bore: 1 inch
• Type: Belt Drive (BD)

This replacement blower assembly offers a cost-effective alternative to repairing worn components. The universal housing design enables flexible mounting in any of four discharge positions, making it suitable for various system configurations. The included vibro-pads reduce operational noise and vibration while extending component life.
