Raypak 013464F 3-Wire PC Board Controller Kit for Pool & Spa Heaters

The Raypak 013464F (also known as 100-10000345) is a genuine OEM 3-wire PC board controller kit designed to simplify electronic retrofit for Raypak and Rheem digital gas pool and spa heaters. This comprehensive replacement kit eliminates the hassle of sourcing individual replacement components by providing all necessary parts in one complete package.

Advanced Control Features:

• Integrated ignition module with automated control system for reliable, hands-off operation
• 2-line 16-character LCD display with plain text diagnostics for easy troubleshooting
• Improved flame sensing capabilities with graphical flame signal strength indicator
• Internal fuse for enhanced circuit protection
• Service menu to aid in troubleshooting and maintenance procedures
• 24V power supply monitoring with diagnostic feedback (no voltmeter required)

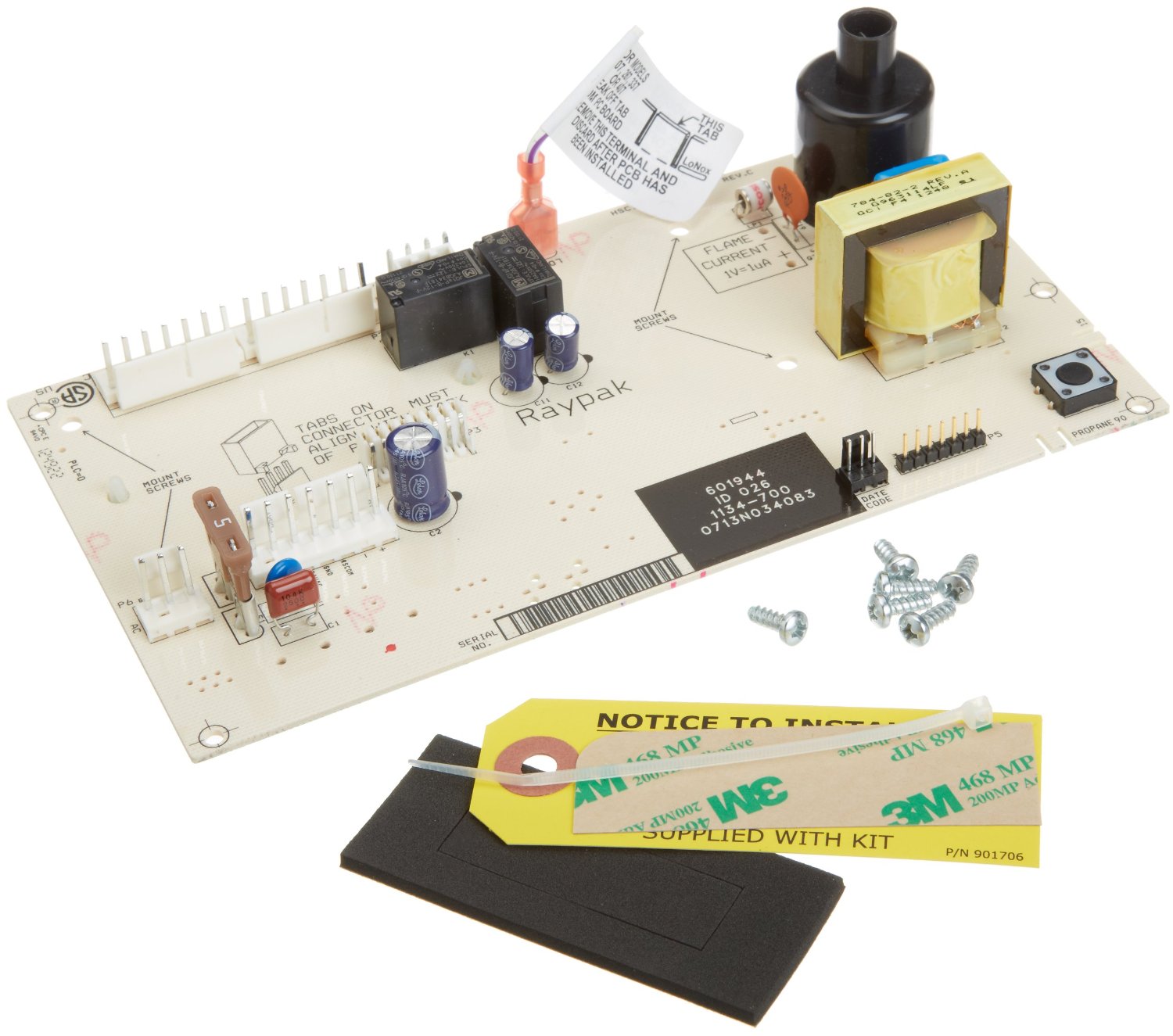

Complete Kit Includes:

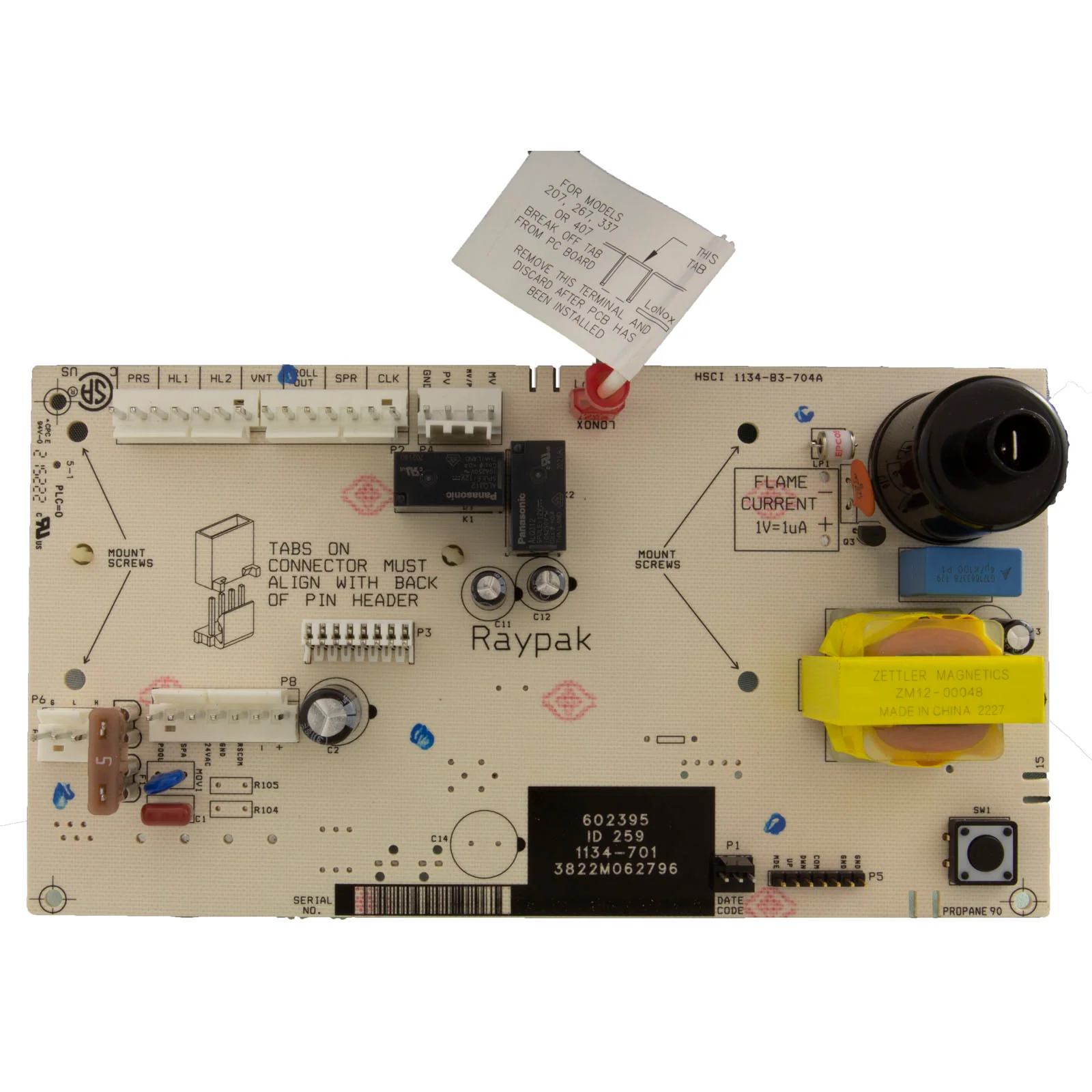

• PC control board with integrated temperature control
• Remote wire harness with 7-pin plug connector
• LCD gasket for water damage protection
• Five #6 x 3/8" mounting screws
• Remote model label decal for control panel

Compatible Models: This controller works with Raypak models 185B, 265B, 335B, and 405B (manufactured November 2003 through October 2004), as well as models 206A, 266A, 336A, 406A, 207A, 267A, 337A, and 407A (manufactured November 2004 and later). Also compatible with select Raypak and Rheem aboveground, electronic ignition, cupro nickel, and Low NOx heater models. The 100-10000345 replaces discontinued part numbers 010253F, 013464F, and 013640F.
