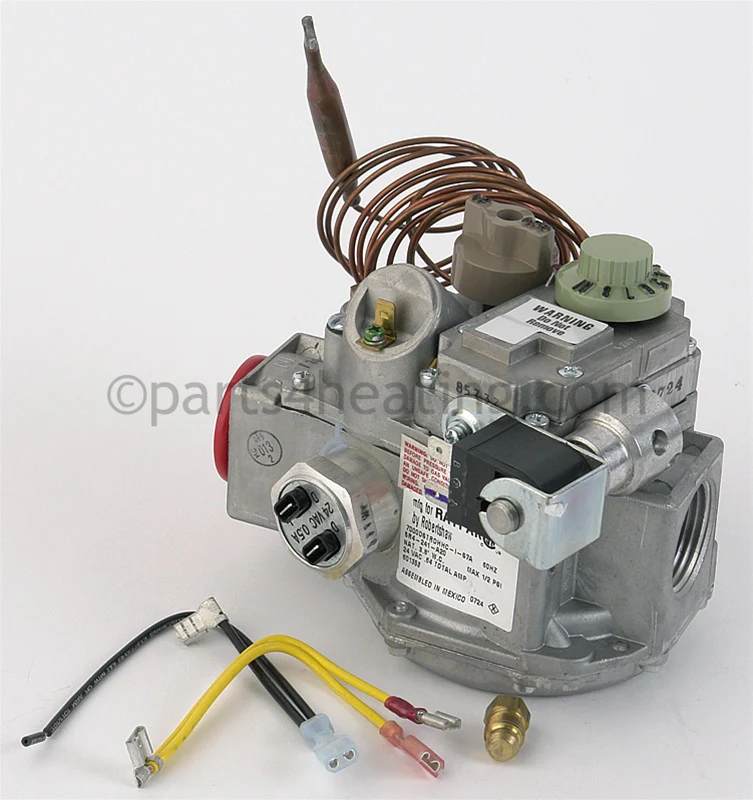

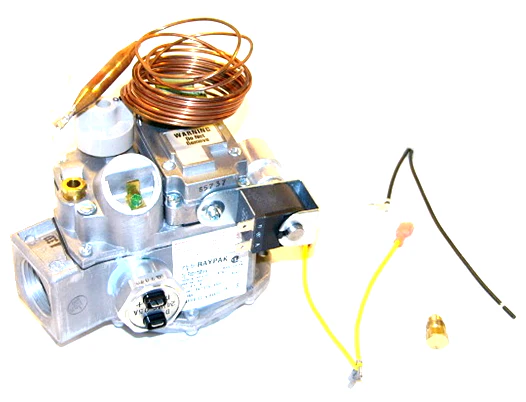

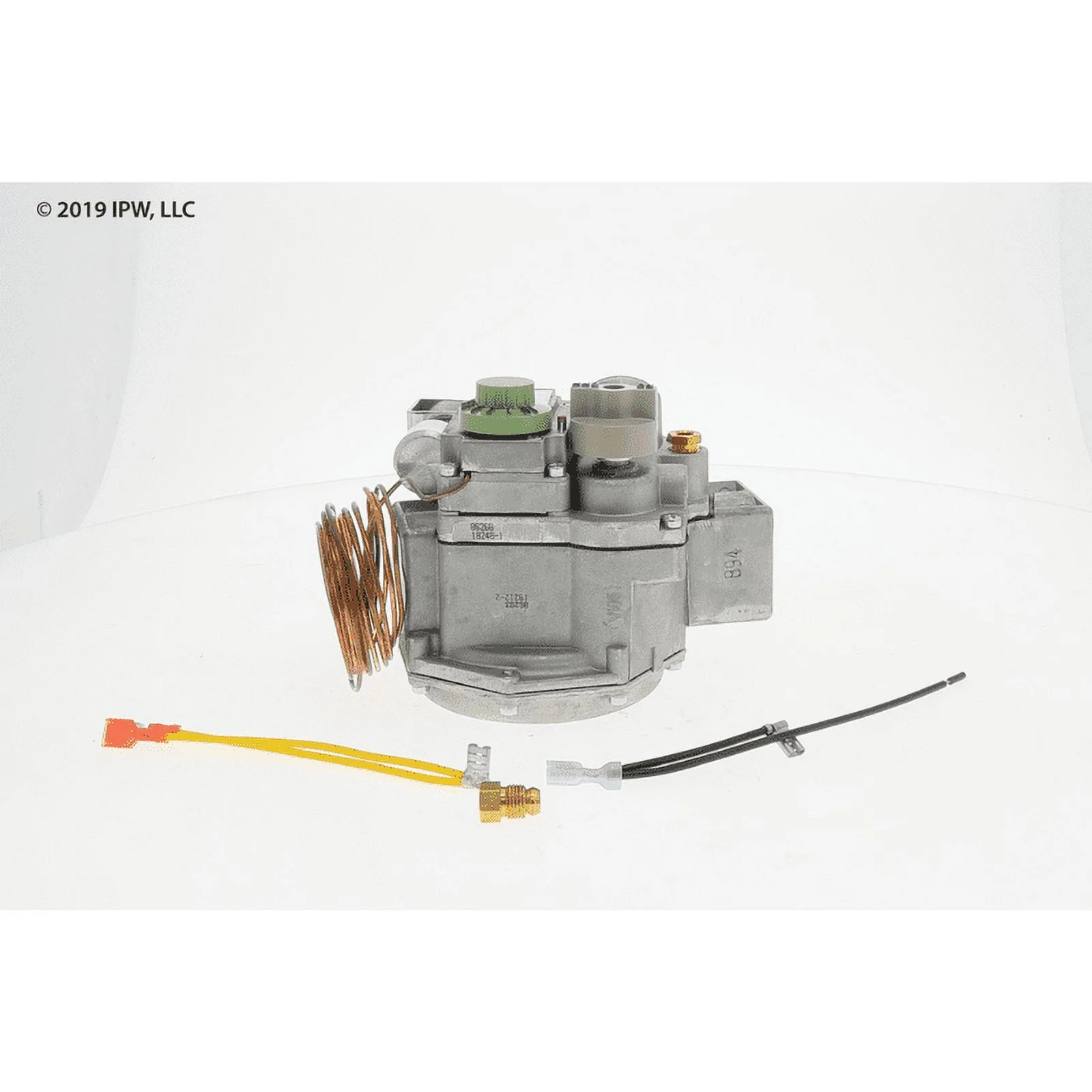

Raypak 006508F Modulating Gas Valve 1 Inch Natural Gas 24V

The Raypak 006508F is a genuine OEM modulating gas valve designed for natural gas boilers and pool heaters. This precision-engineered valve provides accurate gas flow control for optimal combustion efficiency and safe operation in commercial and residential heating applications.

Key Specifications:

• 1-inch inlet and outlet connection size for high-volume gas flow
• 24V AC electrical operation at 60 Hz
• Maximum inlet pressure: 14 inches water column (0.5 PSI)
• Operating temperature range: 110°F to 170°F
• Capacity rating: 720,000 BTU
• Natural gas pressure regulation: 4.0 inches
• Ambient temperature range: -40°F to 175°F

Features:

• Modulating design allows precise control over gas flow rate for optimized system performance
• Straight-through configuration with slow opening feature for soft ignition
• Durable brass construction for excellent corrosion resistance and long service life
• Built-in inlet filtered screen protects internal components
• Standard NEMA terminals for easy electrical connections
• Field-removable components for simplified maintenance
• RoHS compliant

This valve is compatible with multiple Raypak models including 0514, 0624, 0724, 0824 series (A and C variants), 0400, 0403B, and various commercial boiler models. Factory part number 7000DERHC-S7C. Also known as Robert Shaw 5R4-241-A20.
