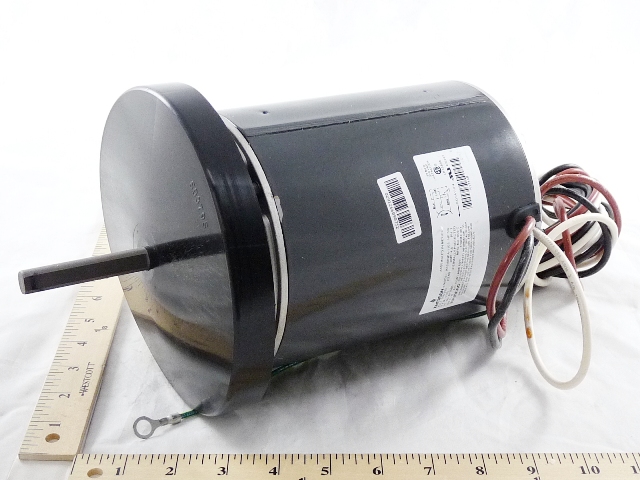

Aaon S19917 3/4 HP Single Phase Motor 208-230V 1075 RPM CCW

The Aaon S19917 is a genuine OEM replacement motor designed for commercial HVAC systems and rooftop units. This single-phase motor delivers reliable 3/4 horsepower performance at 1075 RPM, operating on 208-230 volt power supply for efficient cooling and air handling applications.

Key Specifications:

• Power Output: 3/4 HP (horsepower)
• Voltage: 208-230V single phase
• Speed: 1075 RPM
• Rotation: Counter-clockwise (CCW)
• Current Draw: 2.0 amps
• Bearing Type: Ball bearings for extended service life
• Shaft: 1/2 inch diameter x 3-1/4 inch length
• Motor Diameter: 5-5/8 inches
• Motor Case Length: 7.11 inches
• Frame: 48Y NEMA frame
• Mounting: Vertical shaft up with belly band

Features:

• Genuine AAON OEM part ensuring proper fit and compatibility
• Ball bearing construction for quiet, reliable operation
• Dynamically balanced for reduced vibration
• Thermal overload protection for motor safety
• Durable construction for commercial HVAC environments

Important Notes:

• Requires 15 MFD 370V oval run capacitor (capacitor not included - sold separately)
• Replaces AAON part numbers R1746B and R17470
• Cross-reference: A.O. Smith F48R37A27, Century OAN747
• Designed for AAON rooftop units and air handling systems

This motor is ideally suited for commercial HVAC applications requiring dependable performance in demanding environments. Professional installation by a qualified HVAC technician is recommended.
