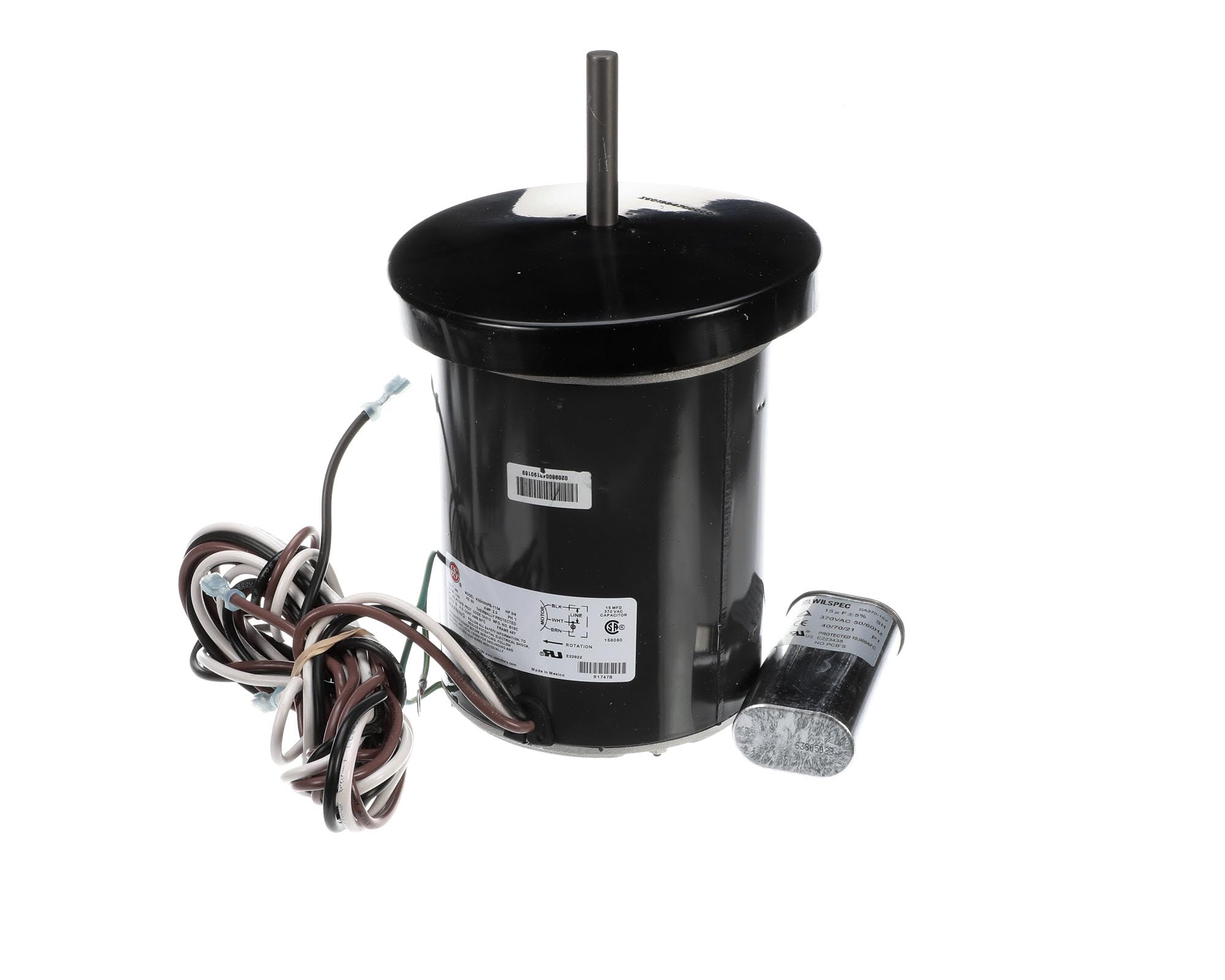

Aaon R1747B Condenser Fan Motor 3/4 HP 460V 1075 RPM Single Phase

The Aaon R1747B is a 3/4 horsepower, 460V, single-phase condenser fan motor designed for use in AAON HVAC systems. It operates at 1075 RPM and features a rain shield for enhanced durability in outdoor environments. This genuine OEM replacement motor ensures reliable performance and proper integration with AAON rooftop and commercial HVAC units.

Technical Specifications:

• Horsepower: 3/4 HP
• Voltage: 460V single-phase (1PH)
• Speed: 1075 RPM
• Current Draw: 2.0 amps
• Rotation: Counterclockwise Lead End (CCWLE)
• NEMA Frame: 48Y
• Shaft: 1/2" x 2 5/16"
• Bearing Type: Ball bearings
• Motor Enclosure: Open
• Mounting: Vertical shaft up (with belly band)

What's Included:

• Rain shield included
• 15 MFD capacitor included

This motor uses a 15 MFD @ 370V capacitor (model 37150H) and is compatible with 26" fan blade (model P86780) or 30" fan blade (model G009610). The manufacturer's part number is Genteq F48U09A27. The included rain shield protects the motor from moisture and weather exposure in outdoor condenser applications, extending service life and maintaining optimal performance in commercial HVAC installations.
