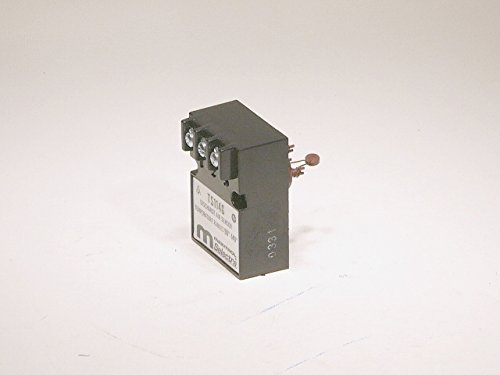

Maxitrol TS114G Discharge Air Temperature Sensor 90-140°F with Mixing Tube

The Maxitrol TS114G is a discharge air temperature sensor designed for precise temperature monitoring and control in gas-fired heating applications. This sensor operates within a temperature range of 90°F to 140°F, making it ideal for commercial and industrial heating systems that require higher temperature monitoring capabilities.

Key Features:

• Temperature range: 90°F to 140°F for mid-to-high temperature applications
• Includes mixing tube for accurate discharge air sensing
• 10,000Ω resistance at 77°F with thermistor design
• Designed for use with Maxitrol AD1014-1116 amplifiers
• Compatible with Selectra electronic modulator and modulator-regulator valves
• Installs directly in discharge air stream for real-time monitoring
• Suitable for natural gas, manufactured gas, mixed gases, and LP gas applications

The TS114G sensor works in conjunction with Maxitrol amplifiers to maintain precise, stable temperatures in gas-fired heating equipment by controlling gas flow with instantaneous response and continual adjustment. The sensor is housed in a mixing tube assembly that ensures accurate temperature readings from the discharge air stream. Note that the sensor and any remote selector must have the same temperature range to be compatible with the system.
