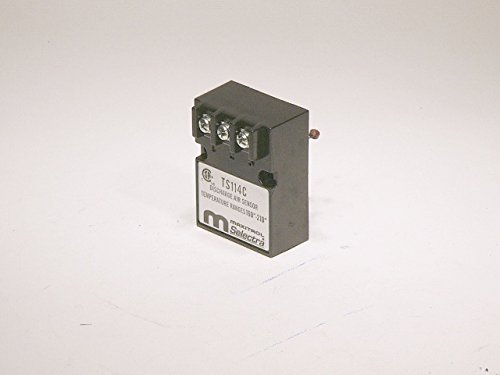

Maxitrol TS114C Series Discharge Air Temperature Sensor F - 14 160-210

The Maxitrol TS114C is a discharge air temperature sensor designed for precise temperature control in gas-fired heating systems. This sensor is part of the Maxitrol Selectra Series 14 temperature regulation system and provides accurate monitoring of discharge air temperatures in the 160°F to 210°F range, making it ideal for high-temperature HVAC applications.

Key Features:

• Temperature sensing range: 160°F to 210°F
• 10,000Ω resistance at 77°F with negative temperature coefficient
• Three terminal screw connections for secure wiring
• Black protective housing for durability
• Designed for use with mixing tube assemblies in discharge air streams
• Compatible with Maxitrol A1014R and other Series 14/44 amplifiers
• CSA approved for safety and reliability

This discharge air sensor works seamlessly with Maxitrol's Selectra electronic modulating control systems, which maintain precise and stable gas-fired temperatures through instantaneous response and continual adjustment. The sensor must be paired with a compatible temperature selector or amplifier with matching temperature range for proper system operation. It is typically installed in the discharge air stream using a mixing tube assembly to ensure accurate temperature readings.

Note: The temperature range on the control dial must match the sensor temperature range (160°F to 210°F) for compatible system operation.
