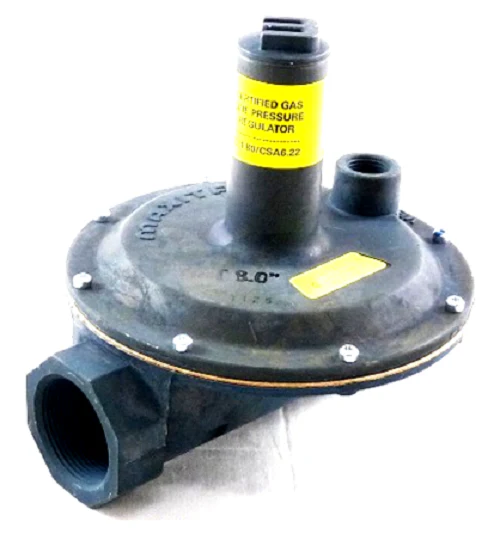

Maxitrol 325-7ABL-1 1/2 Line Pressure Gas Regulator 1.5 Inch NPT

The Maxitrol 325-7ABL-1 1/2 is a certified line pressure gas regulator designed for residential, commercial, and industrial applications requiring precise pressure control on 2 PSI gas piping systems. This 1-1/2 inch NPT regulator features Imblue Technology for enhanced corrosion resistance and extended service life in outdoor applications.

Key Features:

• 1-1/2 inch NPT threaded connections for inlet and outlet
• Certified to ANSI Z21.80 standards for line pressure regulation
• Maximum inlet pressure: 2 PSI (rated for up to 10 PSI testing)
• Outlet pressure range: 7-11 inches water column
• Maximum capacity: 1,250,000 BTU/hr for multiple appliance loads
• High leverage valve linkage assembly delivers positive dead-end lockup
• Imblue Technology coating increases corrosion resistance for outdoor use
• Capable of precise regulation from full flow down to pilot flow
• Operating temperature range: -40°F to 205°F

The 325 Series lever-acting design provides reliable pressure regulation for natural gas, manufactured gas, mixed gases, liquefied petroleum gases, LP gas-air mixtures, and DIN EN 437 gas families 1, 2, and 3. The regulator reduces gas line pressure to a level within the appliance or equipment's operating range while maintaining consistent performance across varying flow demands.

Note: Vent protector (13A32-50) sold separately. This regulator must be installed and operated in accordance with Maxitrol's safety warning instructions and local codes.
