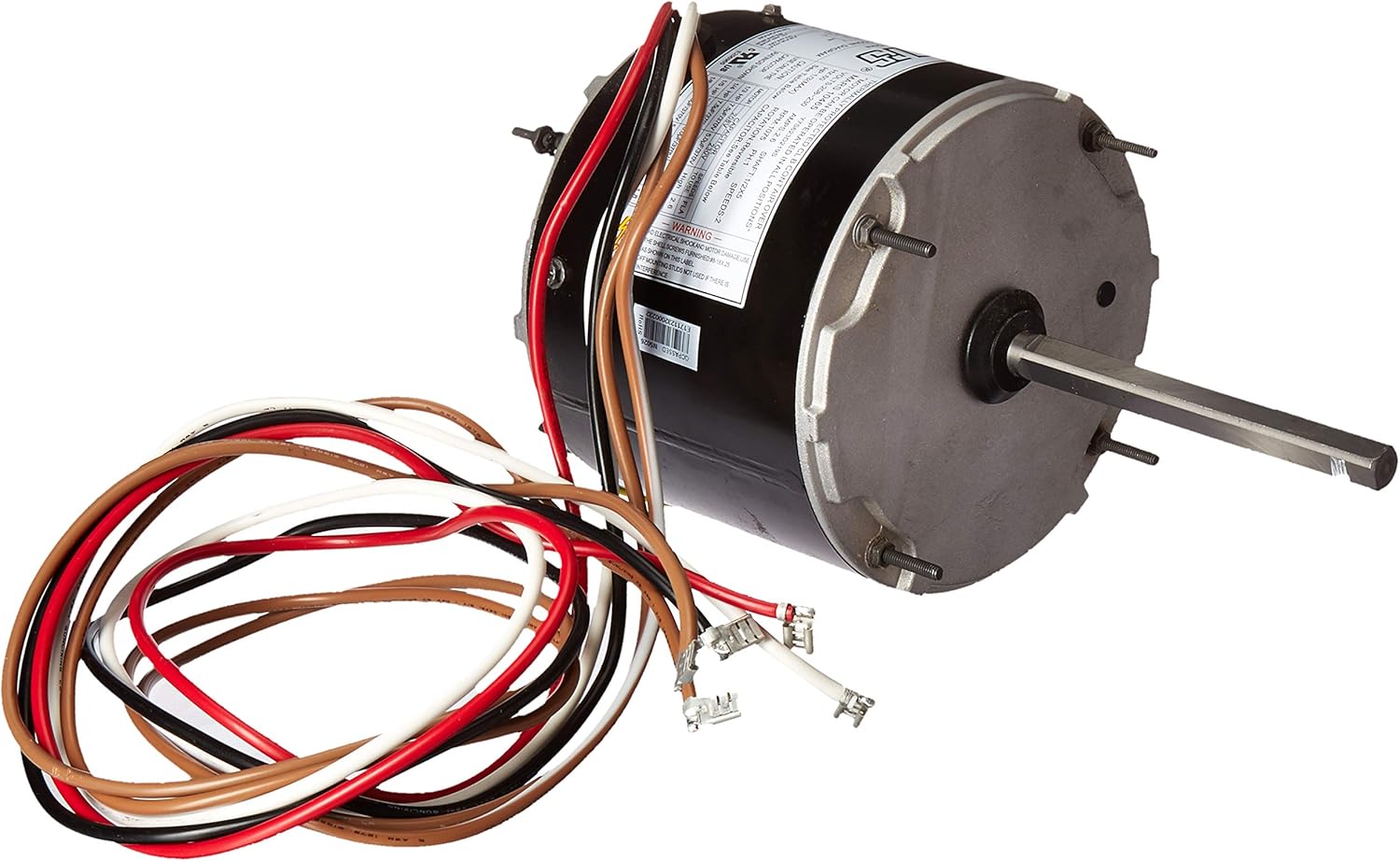

Mars 10465 Multi-Horsepower Condenser Fan Motor 1/6-1/3 HP 208-230V 1075 RPM

The Mars 10465 is a versatile multi-horsepower condenser fan motor designed for air conditioning and heat pump applications. This 2-speed motor operates at 1075 RPM and features adjustable power ratings from 1/6 to 1/3 HP, making it an ideal choice for HVAC technicians who need flexible truck stock inventory.

Key Specifications:

• Multi-horsepower: 1/6 HP to 1/3 HP maximum
• Voltage: 208-230 VAC, single phase, 60 Hz
• Speed: 2-speed, 1075 RPM, reversible rotation
• Full load amperage: 3.9A (max), 2.6A (typical)
• NEMA 48 frame with 5.5-inch diameter
• Shaft: 1/2 inch diameter x 5 inches long
• Motor enclosure: Totally Enclosed Air Over (TEAO)
• Dimensions: 5.5 inches diameter x 9.73 inches length

Features and Benefits:

• PSC (Permanent Split Capacitor) motor type for reliable performance
• Rheem mounting holes with screws pre-installed for quick installation
• Through-bolt or band mounting options for versatile applications
• Water slinger on shaft protects motor from moisture damage
• Thermal overload protection for enhanced safety and longevity
• Ball bearing construction for smooth, quiet operation
• Class B insulation rated for 60°C ambient temperature
• CUL certified for safety compliance
• All-angle mounting capability

Technical Details:

• Requires capacitor: 5/7.5 µF at 370 VAC (not included)
• Automatic thermal protection
• Reversible rotation for flexible installation

This direct-drive motor is suitable for use in residential and commercial HVAC systems, providing reliable performance for both air conditioning and heat pump duty applications. The multi-horsepower design reduces inventory requirements while maintaining compatibility with a wide range of equipment.
