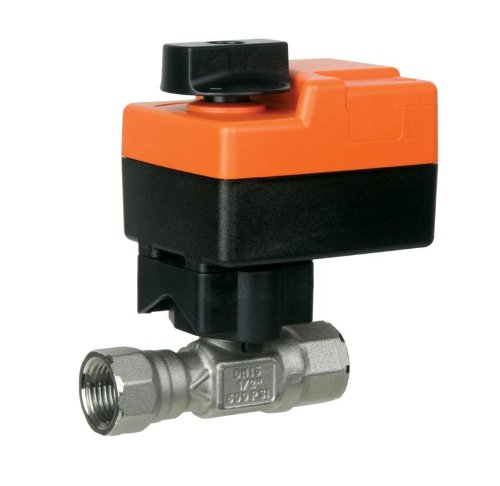

Belimo B215HT073+TR24-3 High-Temp Characterized Control Valve 1/2" 2-Way 0.73 Cv with TR24-3 Floating Actuator

Manufacturer

Part Number

B215HT073+TR24-3
Sale Price

$257.69

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B215HT073+TR24-3 is a factory-assembled combination of a High-Temperature Characterized Control Valve (HTCCV) and a non-spring-return, 24V floating actuator. Designed for precise flow control in high-temperature heating systems, this assembly delivers reliable modulating performance in HVAC hydronic applications including hot water coils, heat exchangers, and terminal units.

Valve Specifications (B215HT073):

  • Valve Type: 2-Way Characterized Control Valve (CCV)
  • Connection Size: 1/2" NPT
  • Flow Coefficient: 0.73 Cv
  • Body Style: High-Temperature rated
  • End Connections: Female NPT threaded
  • Close-Off Pressure: Up to 50 PSI (actuator dependent)
  • Fluid Temperature Range: Up to 250°F (121°C) for high-temp service
  • Body Material: Brass
  • Characterized disc for equal-percentage flow characteristic

Actuator Specifications (TR24-3):

  • Actuator Type: Non-Spring-Return (Non-S/R)
  • Power Supply: 24V AC/DC
  • Control Signal: Floating (3-point / 2-position) control
  • Torque Output: 35 in-lb (4 Nm)
  • Protection Rating: IP54
  • Manual Override: Yes, push-button
  • Aux Switch: Not included (optional)
  • Agency Listings: UL, CE, cULus

Key Features:

  • Factory-matched valve and actuator assembly for simplified ordering and installation
  • High-temperature rated valve body ideal for heating-only hydronic systems
  • Characterized control disc provides superior flow control accuracy vs. traditional ball valves
  • Non-spring-return design retains last position on power loss
  • Floating control input compatible with most HVAC controllers and thermostats
  • Compact form factor suitable for tight mechanical spaces
  • Direct mount — no linkage or brackets required

The Belimo B215HT073+TR24-3 is an ideal solution for OEM equipment builders and contractors seeking a pre-matched, high-temperature valve assembly with dependable floating-point actuation in commercial and light industrial HVAC systems.
