Belimo B215HT073+LRB24-3 High Temp Characterized Control Valve Assembly 1/2" 2-Way 0.73 Cv Non-Spring Return 24V Floating

Manufacturer

Part Number

B215HT073+LRB24-3
Sale Price

$291.33

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

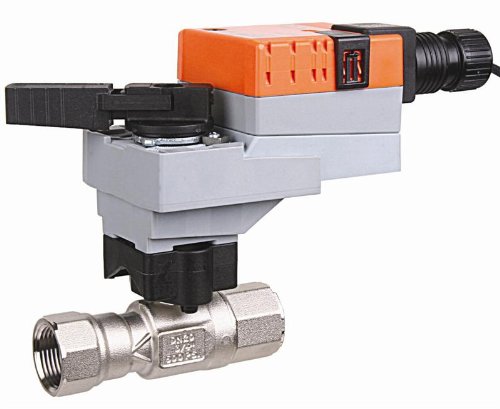

The Belimo B215HT073+LRB24-3 is a factory-assembled High Temperature Characterized Control Valve (HTCCV) combining a 1/2" 2-way ball valve with the LRB24-3 non-spring return electric actuator. Designed for demanding HVAC applications, this assembly provides reliable on/off and floating point flow control of hot water, chilled water, or low-pressure steam.

Key Features:

  • Valve Type: High Temperature Characterized Control Valve (HTCCV) — 2-way configuration
  • Pipe Size: 1/2" Female NPT connection
  • Flow Coefficient: Cv 0.73 (1.46 GPM @ Δ4 psi)
  • True equal percentage flow characteristic for precise control performance
  • Body Material: Brass body with stainless steel ball and stem
  • Close-Off Rating: 100 PSI
  • Actuator: LRB24-3 — Non-spring return (non-fail-safe), direct coupled
  • Voltage: AC/DC 24V (range: AC 19.2–28.8V / DC 21.6–28.8V)
  • Control Signal: On/Off and Floating Point (3-wire)
  • Runtime: 90 seconds
  • Power Consumption: 1.5W in operation, 0.2W at rest; 2.5 VA transformer sizing
  • Rotation: 90°, adjustable with mechanical stop; direction selectable via switch
  • Manual Override: External push button
  • Electrical Connection: 18 GA plenum cable, 3 ft (1 m), with 1/2" NPT conduit connector
  • Overload Protection: Electronic throughout 0–90° rotation; double-insulated actuator
  • NEMA Rating: NEMA 2
  • Country of Origin: United States

This pre-assembled valve and actuator combination simplifies installation and ensures precise, repeatable control in commercial and industrial HVAC systems. The brass valve body and stainless steel internals provide excellent durability for high-temperature water and steam service.
