Johnson Controls VG7243ST+7150G VG7000 2-Inch Stainless Steel Globe Valve with VA-7150 Non-Spring Return Floating Electric Actuator

The Johnson Controls VG7243ST+7150G is a factory-assembled combination package pairing the VG7243ST Series VG7000 Stainless Steel Trim Globe Valve with the VA-7150-1001 Non-Spring Return Floating Electric Actuator. Designed for commercial HVAC hydronic systems, this assembly provides precise flow control of hot water, chilled water, and other compatible fluids in two-position or floating-point control applications.

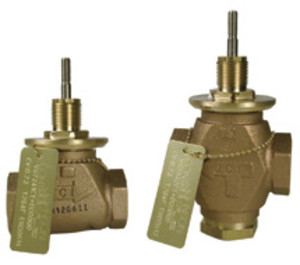

Globe Valve — VG7243ST Specifications:

• Valve Size: 2-inch
• End Connection: NPT threaded
• Cv (Flow Coefficient): 46
• Trim Material: Stainless Steel
• Body Style: Two-way, Normally Open (N/O)
• Valve Series: VG7000

Actuator — VA-7150-1001 Specifications:

• Control Type: Floating (Three-Point) Control
• Return Type: Non-Spring Return
• Supply Voltage: 24V AC
• Actuator Series: VA-7150
• Mounting: Direct-mount to VG7000 series valve body

Key Features:

• Factory-matched valve and actuator combination for simplified ordering and installation
• Stainless steel trim for enhanced corrosion resistance and extended service life
• Normally Open configuration — valve opens on loss of power, suitable for fail-safe heating applications
• Non-spring return actuator retains last position on power loss
• Floating control signal (tri-state) compatible with standard DDC and building automation system controllers
• Compact actuator design with manual override capability
• Suitable for two-pipe and four-pipe hydronic HVAC systems

The VG7243ST+7150G combination is ideal for use in commercial building automation systems, air handling units, fan coil units, and terminal unit applications requiring reliable, precise water flow modulation with 24V floating control.
