Johnson Controls VG7243GT+3008D VG7000 Series 1/2" NPT Stainless Steel Trim Globe Valve with V-3000 Pneumatic Actuator 4-8 psig

Manufacturer

Part Number

VG7243GT+3008D
Black Friday Price

$630.32

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Johnson Controls VG7243GT+3008D is a factory-assembled combination of the VG7243GT two-way stainless steel trim globe valve body and the Model V-3000-8012 exposed pneumatic spring-return actuator. Designed for precise flow regulation in commercial and industrial HVAC systems, this assembly controls hot water, chilled water, or steam in response to a pneumatic control signal.

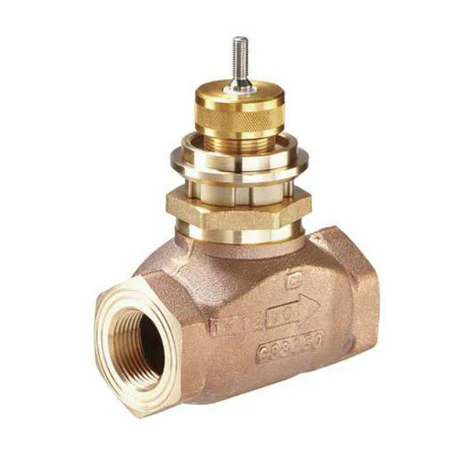

The VG7243GT valve body features a 1/2" NPT end connection with a bronze body, stainless steel trim, and a flow coefficient (Cv) of 4.6. It is configured as a two-way, normally open (push-down-to-close) valve with an equal percentage flow characteristic, delivering consistent and accurate flow control across the full stroke range.

The V-3000-8012 pneumatic actuator provides spring-return operation with a 4–8 psig spring range, offering a reliable fail-safe position on loss of air signal. The actuator features an effective diaphragm area of 8 sq. in. and is designed to mount directly to the VG7000 series valve body for a compact, integrated installation.

Key Features:

  • Valve size: 1/2" NPT female end connections
  • Flow coefficient (Cv): 4.6
  • Two-way, normally open (push-down-to-close) configuration
  • Equal percentage flow characteristic
  • Stainless steel trim for enhanced corrosion and steam resistance
  • Bronze valve body — ANSI Class 250 rated
  • Media: hot water, chilled water, or saturated steam up to 38 psig
  • Water temperature range: 35°F to 248°F (2°C to 120°C)
  • Steam temperature: maximum 338°F (170°C)
  • Maximum steam pressure drop: 100 psid (690 kPa) for stainless trim
  • Maximum water pressure drop: 35 psid (241 kPa) for 1/2" to 1-1/4" valves
  • Pneumatic actuator spring range: 4–8 psig
  • Actuator diaphragm area: 8 sq. in.
  • Spring-return fail-safe action
  • ANSI Class IV leakage rating for tight shutoff
  • Standard Johnson Controls Ring Pack packing for long service life
  • Compatible with optional V-9502-90 positioner (exposed spring models)

The VG7243GT+3008D is part of Johnson Controls' VG7000 Series, which offers complete actuator interchangeability for easy field retrofit or replacement. This assembly is ideal for zone control, coil bypass, and other HVAC hydronic and steam system applications requiring reliable pneumatic control.
