Johnson Controls VG1241BG Two-Way Ball Valve 3/4" NPT 4.7 Cv Plated Brass Trim

Manufacturer

Part Number

VG1241BG
Black Friday Price

$69.47

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

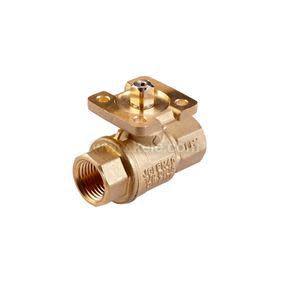

The Johnson Controls VG1241BG is a 3/4-inch, two-way, forged brass body ball valve from the VG1000 Series, designed for precise flow regulation of hot water, chilled water, and 50% glycol solutions in commercial HVAC systems. Sold as a valve body only (less actuator), it is compatible with a range of Johnson Controls direct-coupled electric actuators for on/off, floating, or proportional control.

The VG1241BG features a 4.7 Cv flow coefficient and a characterized insert that delivers equal percentage flow control — providing Cv performance comparable to traditional globe valves in a compact ball valve package. Its 3/4-inch NPT threaded end connections make for straightforward installation into standard piping systems.

Key Features:

  • Forged brass body — rated for 580 psig static pressure
  • Chrome-plated brass ball and stem assembly — suitable for chilled water and hot water applications; fluid temperature range of 23°F to 203°F (-5°C to 95°C)
  • Graphite-reinforced PTFE seats — 15% graphite-reinforced ball seals for superior wear resistance and tight shutoff
  • 500:1 rangeability — delivers accurate flow control under all load conditions
  • Maintenance-free design — rated for over 200,000 full stroke cycles in iron-oxide contaminated water
  • 3/4" NPT threaded end connections — standard threaded pipe connections for easy installation
  • 4.7 Cv flow coefficient — equal percentage characterized flow control
  • Two-way configuration — sold without actuator (less actuator)

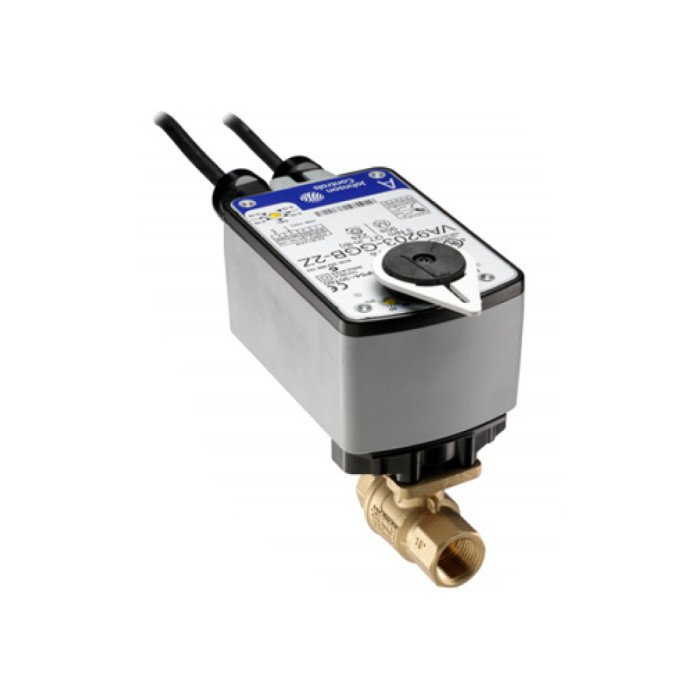

The VG1241BG is compatible with Johnson Controls VA9104, M9106, M9109, and M9100 Series Non-Spring-Return actuators, as well as VA9203 and VA9208 Series Spring-Return Electric Actuators, allowing it to be configured for on/off, floating, or proportional control. It is part of the VG1000 Series, which is available in connection sizes from 1/2 in. to 2 in. with Cv ratings from 1.2 to 73.7.
