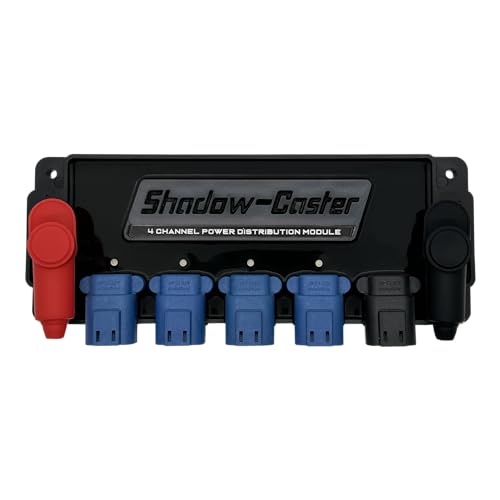

Shadow-Caster LED Lighting SCM-PD4CH 4 Channel Underwater Light Power Distribution Module, 10A Fused Relays, IP67

The Shadow-Caster LED Lighting SCM-PD4CH is a 4-channel marine power distribution module (underwater light relay module) that lets you connect up to 4 Shadow-Caster underwater lights. Digital over-current protection on every output supports safe operation of multiple lights and makes it easier to manage the high switching current of multi-light installations.

The compact, waterproof box is designed for mounting in the bilge and other wet locations.

Features:

• Compact remote power control box
• Green/red LED indicates the status of each output channel
• Individual digital over-current protection for each channel
• Compatible with Shadow-Caster single and multi-color lights
• Recommended when installing two or more underwater lights
• Can be used with a helm-mounted switch, or with no switch when using a compatible Shadow-Caster controller
• Blue Shadow-Caster backlight indicates the state

Specifications:

• Compatible with 12V or 24V systems
• Up to 10 amps per channel
• 5/16-18" power lugs
• IP67 wash down rated enclosure

What's Included:

• 4 position power control box
• Mounting hardware: 4 #8 PH stainless steel screws, 0.5" long
