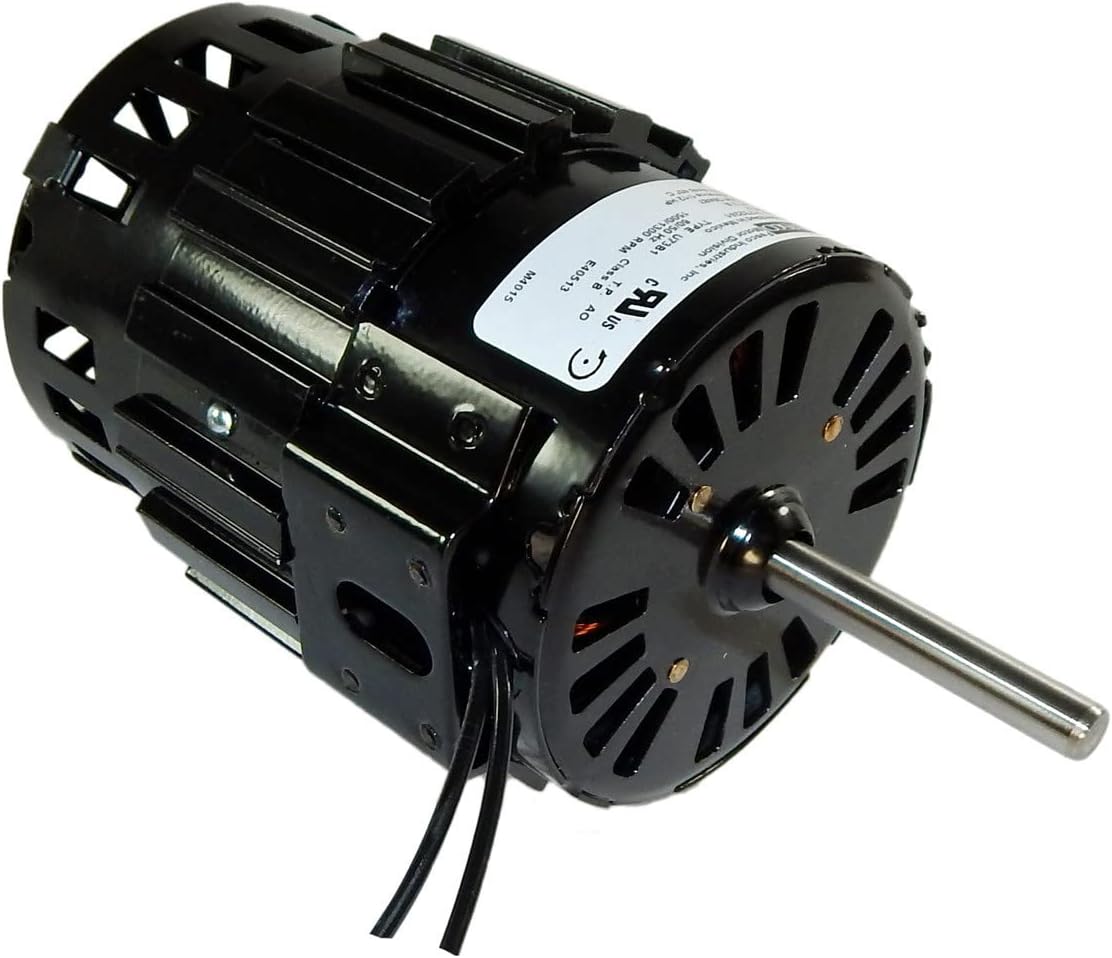

Tecumseh 810E026A81 Refrigeration Condenser Fan Motor 1/12 HP 230V 1500 RPM

The Tecumseh 810E026A81 is a reliable 1/12 horsepower refrigeration condenser fan motor designed for commercial HVAC and refrigeration applications. This shaded pole motor operates at 230 volts AC with a nameplate speed of 1500 RPM, providing consistent performance for condenser cooling systems.

Key Specifications:

• Power: 1/12 HP (horsepower)
• Voltage: 230V AC, single phase
• Speed: 1500 RPM
• Motor Design: Shaded pole
• Full Load Amps: 1.2-1.3A
• Frame Size: 3.3 inches
• Shaft Diameter: 5/16 inch
• Shaft Length: 2-1/8 inches
• Rotation: Counterclockwise from shaft end
• Enclosure: Open air-over design
• Bearings: Sleeve type
• Mounting: Rigid base

Additional Features:

• Insulation Class B for enhanced thermal protection
• Automatic thermal protection
• Continuous duty cycle rating
• CSA Certified and UL Recognized
• Maximum ambient temperature: 40°C
• Overall motor length: 7 inches (4-13/16 inches less shaft)
• Body diameter: 3.4 inches

This OEM Tecumseh motor is commonly replaced by aftermarket equivalents including Fasco D9487 and Century 9487. Cross-reference numbers include TFM262 and F33HXDJ-3668. Ideal for replacing worn or failed condenser fan motors in commercial refrigeration equipment, extending the service life of your HVAC system.
