Supco SSN2000 Universal Silicon Nitride Hot Surface Igniter Kit 120V

The Supco SSN2000 is a universal silicon nitride hot surface igniter kit designed to replace hundreds of OEM furnace and boiler igniters. This advanced igniter utilizes silicon nitride (SiNi) technology, offering superior performance and durability compared to traditional silicon carbide igniters.

Key Features:

• Silicon nitride construction provides exceptional strength and durability
• Fast heat-up time: reaches 2102°F in less than 17 seconds at 120 VAC
• Operating temperature range: 2156°F to 2426°F (1180°C to 1330°C)
• Low power consumption: uses only 1.3 amps at 120 VAC
• Extended lifespan: over 50,000 life cycles
• 18 gauge copper high temperature fiberglass insulated lead wires
• Higher resistance to oxidation for longer service life
• More robust design withstands handling and transit better than ceramic igniters
• 1.97" element length with round configuration
• Cold resistance: 15-30 Ohms at 77°F

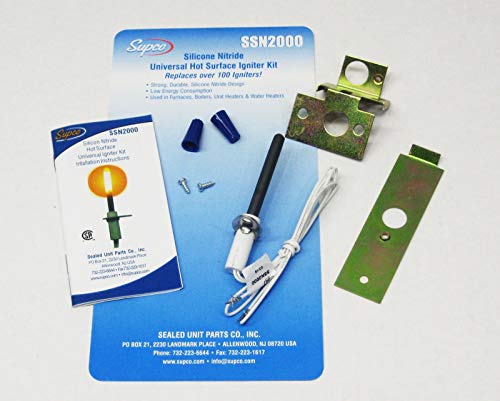

Kit Includes:

• Hot surface igniter
• Straight mounting bracket
• L-shaped mounting bracket
• Mounting screws
• Cable twist ties
• Installation instructions with cross-reference guide

This universal replacement kit minimizes inventory needs and offers superior gas lighting ability. The silicon nitride material is non-porous, preventing contamination that can lead to premature failure. Handle by the ceramic base only during installation to avoid skin oils contacting the element surface.

Note: Silicon nitride igniters cannot be used in direct sense applications. Operating voltage: 120 VAC (+/- 10-15%).
