Supco SLP1032 Low Pressure Switch 10 PSI Open 32 PSI Close HVAC Refrigeration

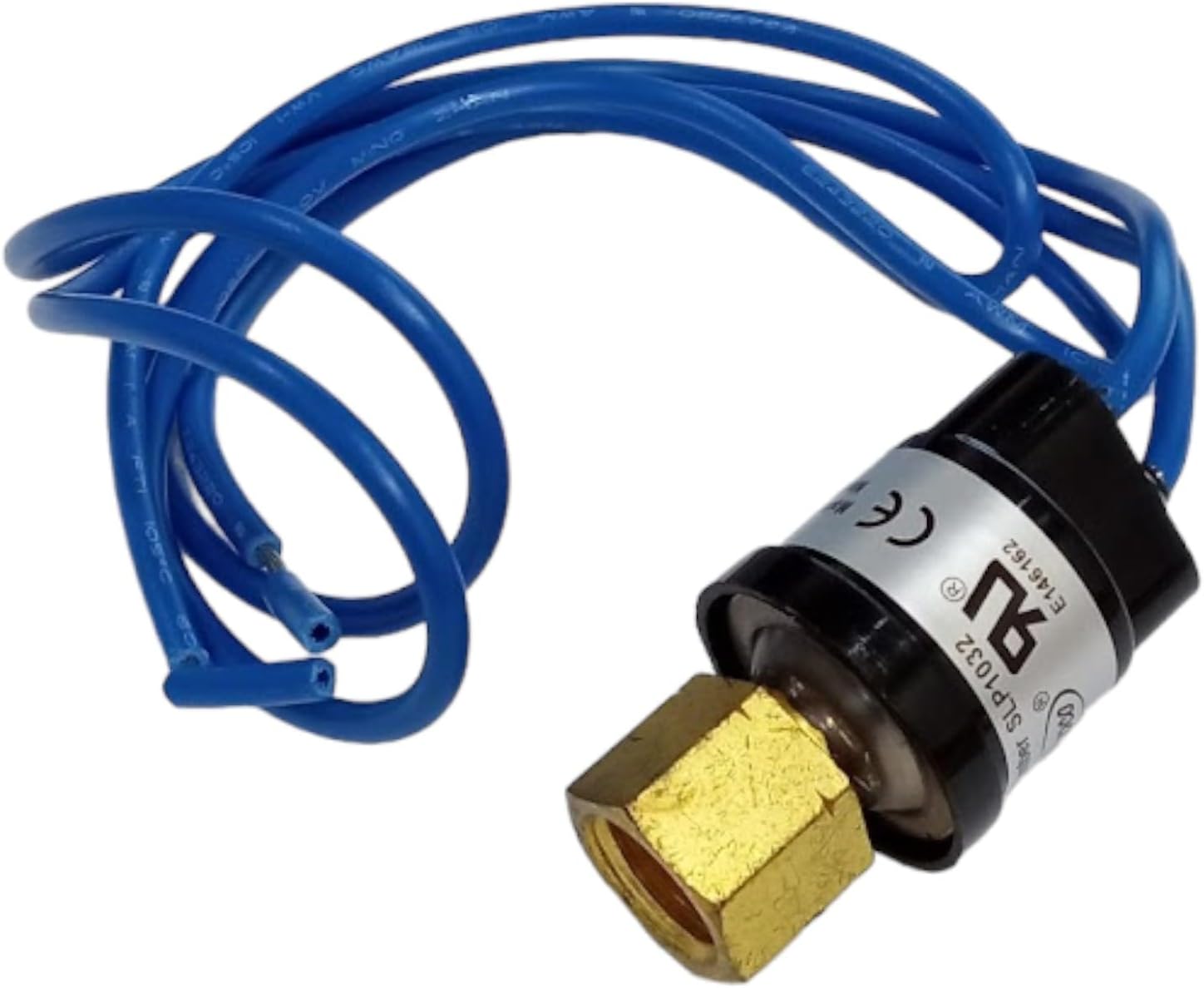

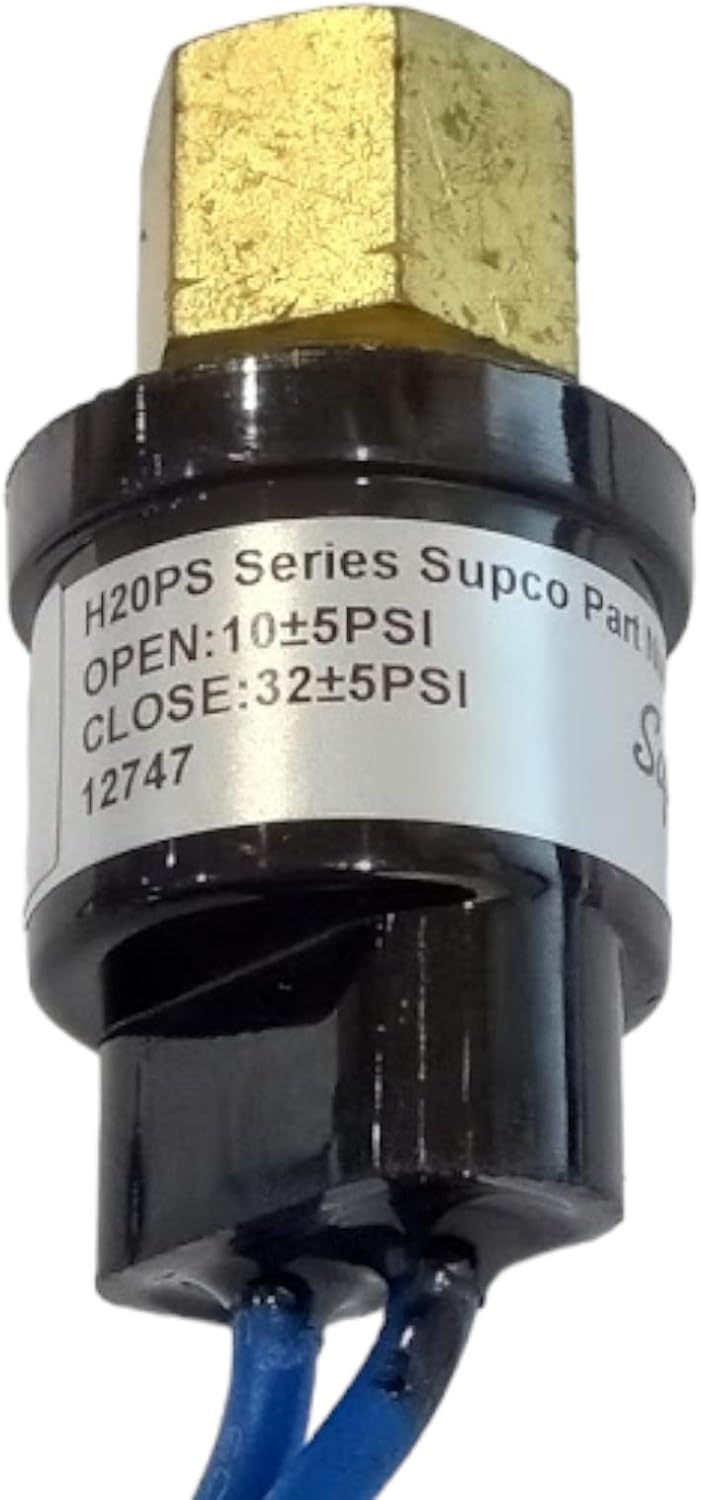

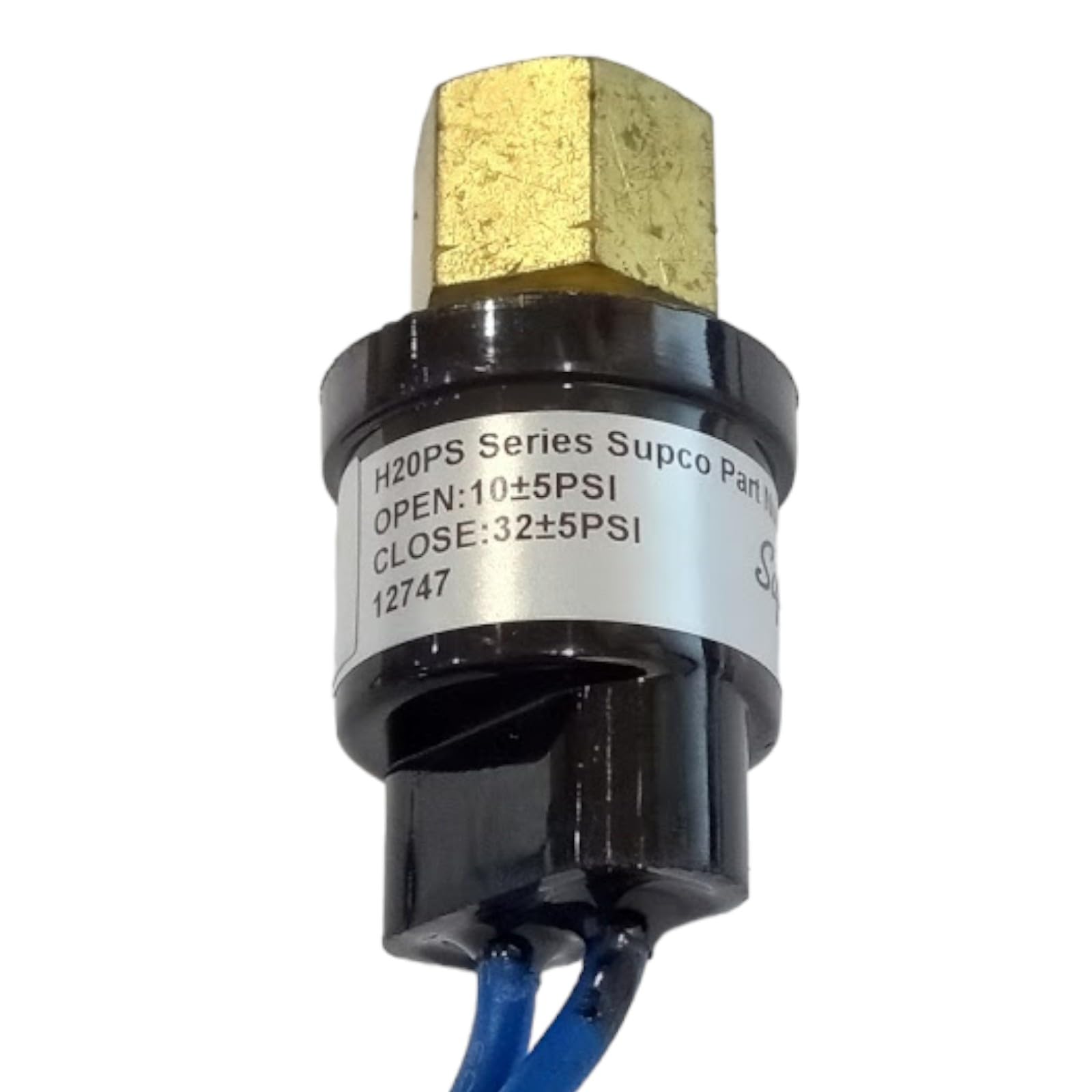

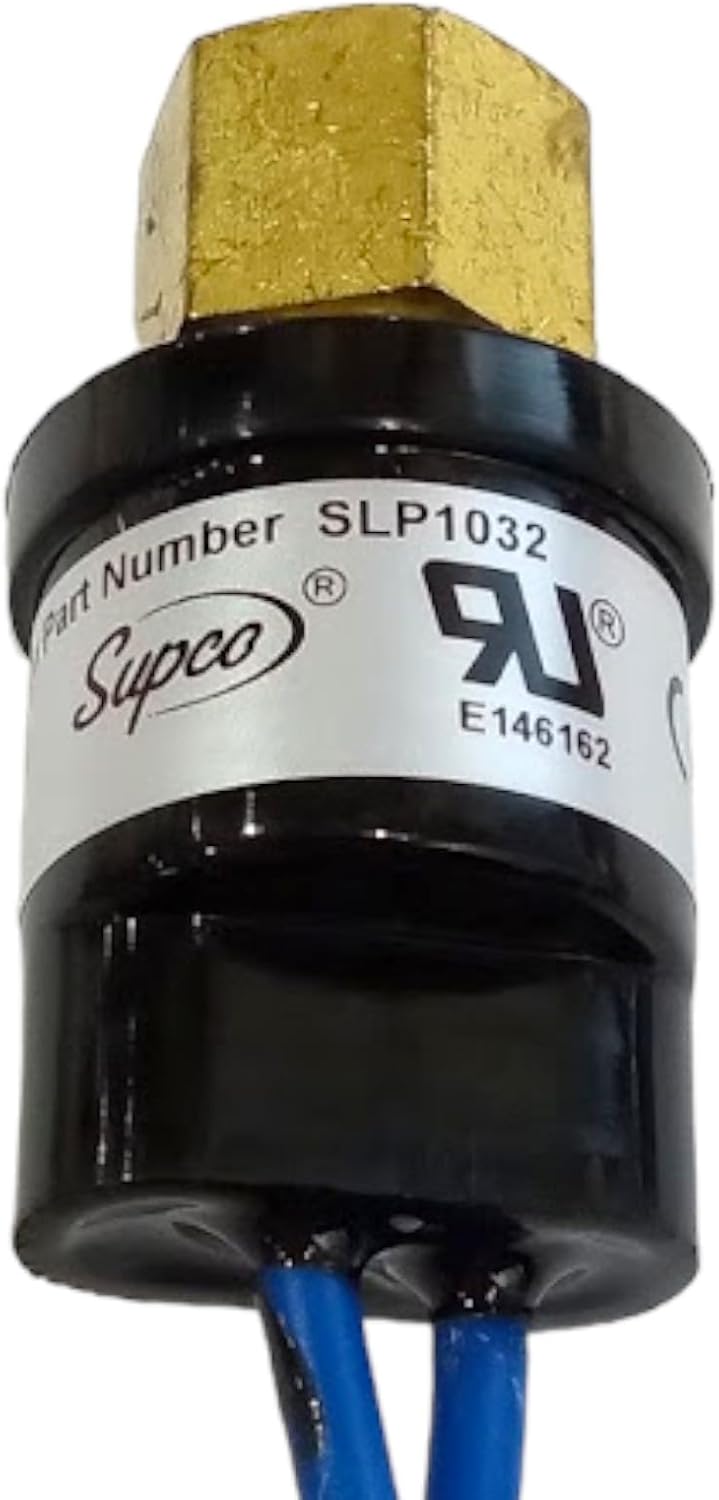

The Supco SLP1032 is a single pole - single throw, direct mount low pressure switch for use with HFC, HCFC, and CFC refrigerants. This non-adjustable pressure control opens on pressure fall at 10 PSI and closes at 32 PSI, providing reliable protection for HVAC and refrigeration compressors and evaporators.

Key Features:

• 1/4" SAE 45° female flare fitting with valve core depressor
• Automatic reset functionality
• Snap acting stainless steel hermetically sealed sensor
• 18 AWG wire leads, 18" long
• Rated for 100,000 cycles at rated load
• ±5 PSI tolerance for precise control

Electrical Specifications:

• Rated voltage: 24/120/240 VAC @ 50/60 Hz
• Maximum load: 6 RLA (Rated Load Amps), 36 LRA (Locked Rotor Amps)
• Versatile voltage compatibility from 12 VDC to 240 VAC

Operating Conditions:

• Ambient temperature: 20°F to 176°F (-30°C to 80°C)
• Fluid temperature: 60°F to 250°F (-50°C to 120°C)
• Working pressure: 0 to 650 PSI
• Bursting pressure: 5,000 PSI

This encapsulated, economical pressure switch is designed for direct mounting with its compact size and lightweight construction, making installation quick and easy in commercial refrigeration, air conditioning, and HVAC systems. UL Recognized and CE certified for safety and reliability.
