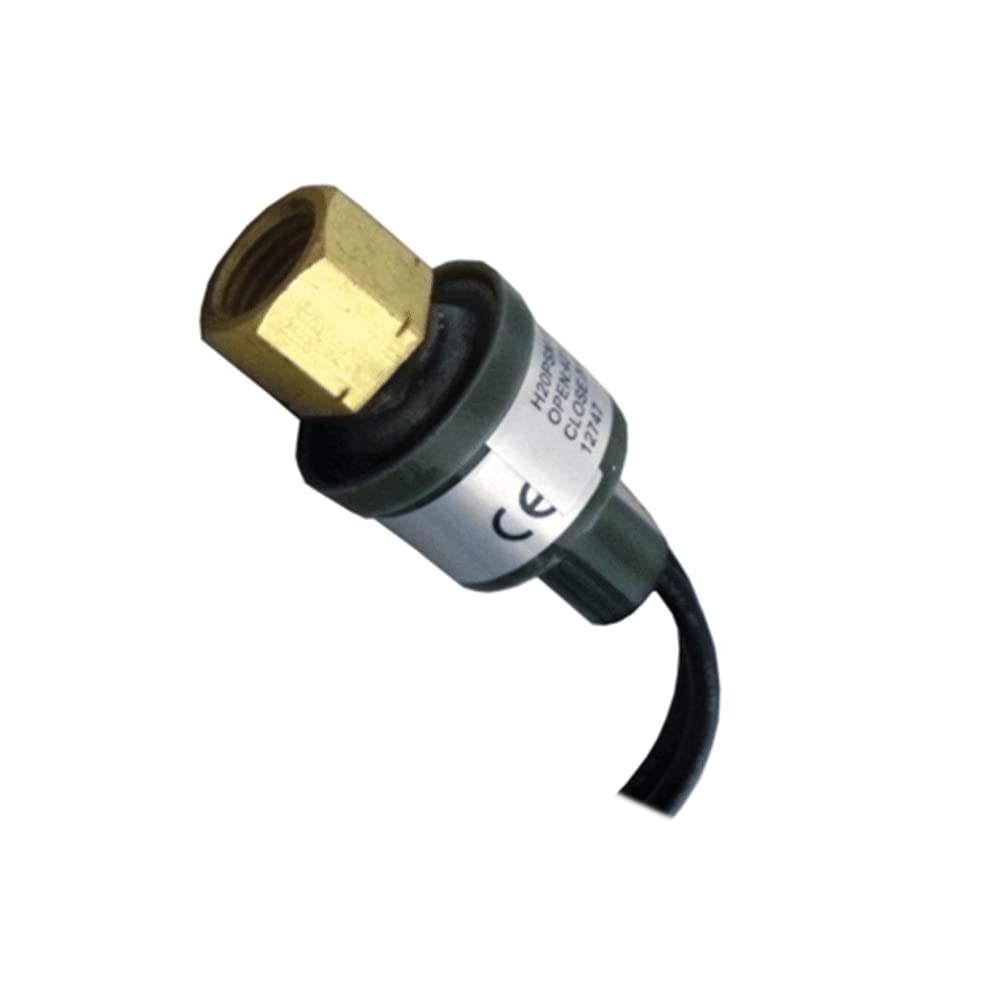

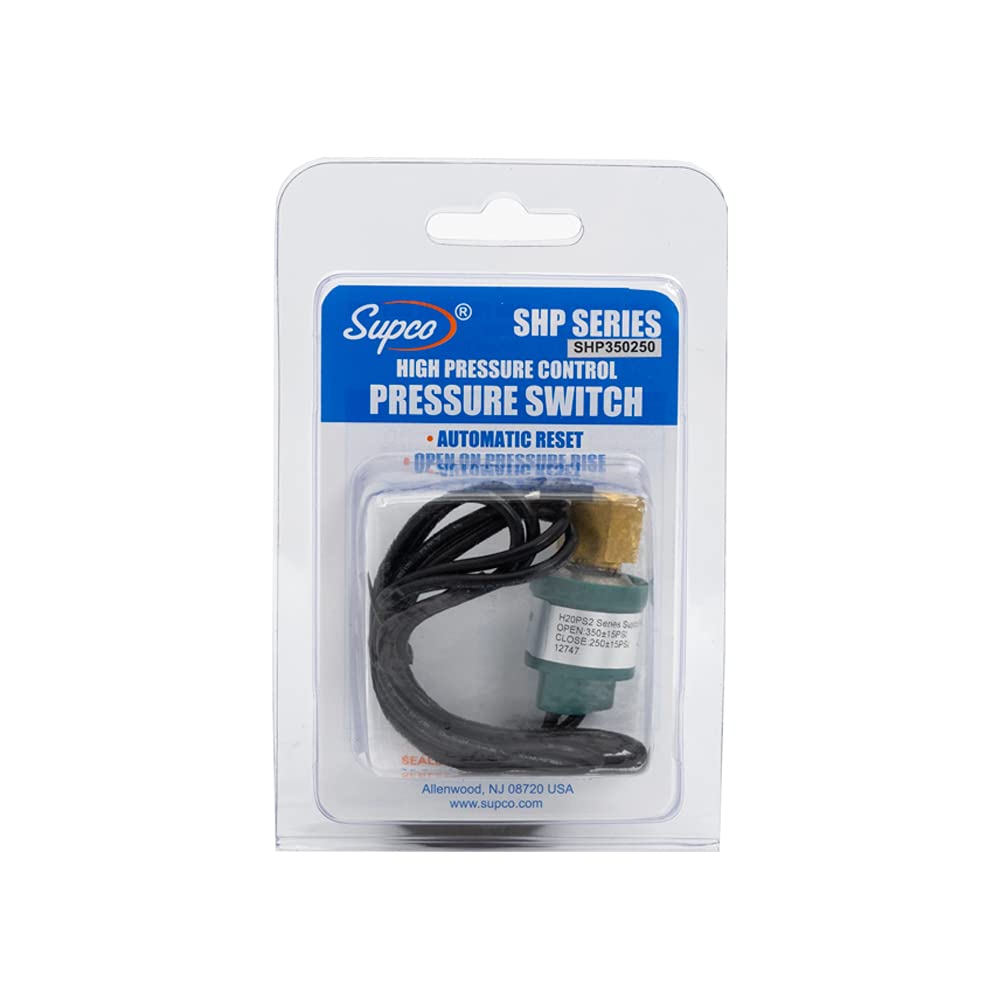

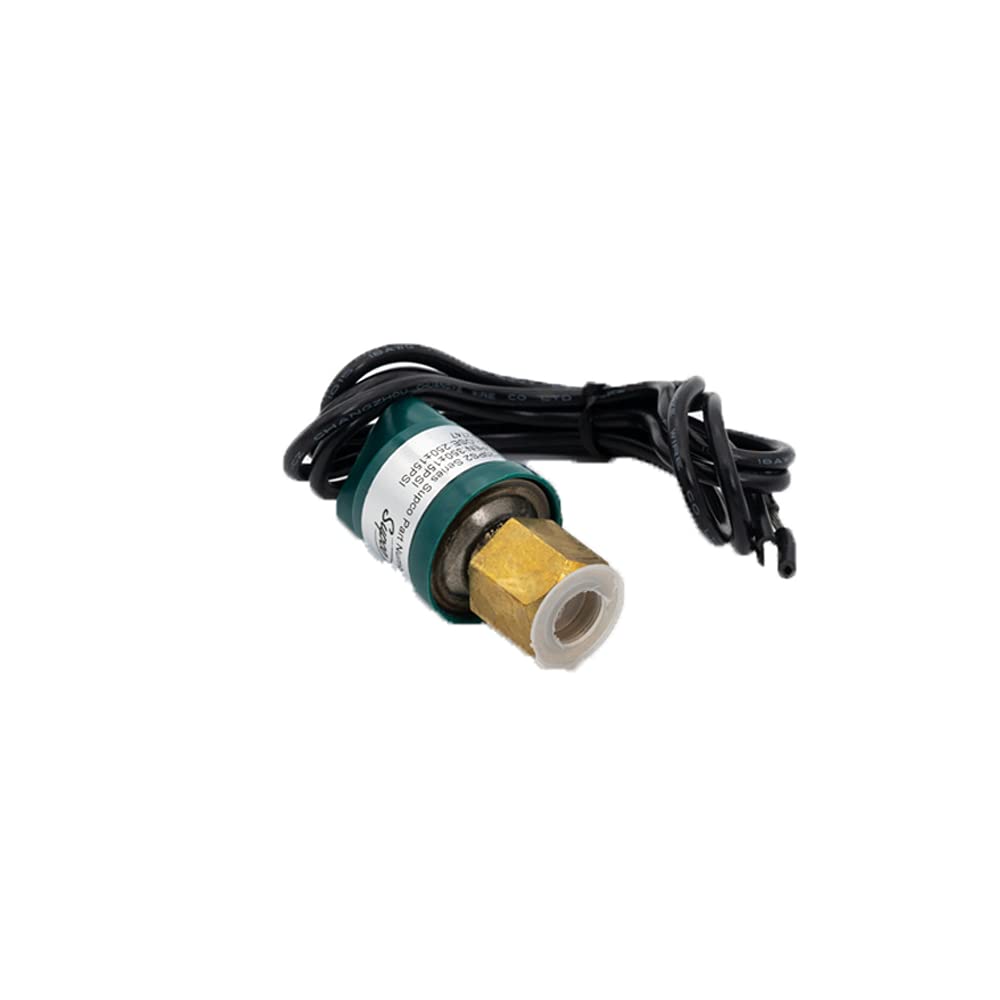

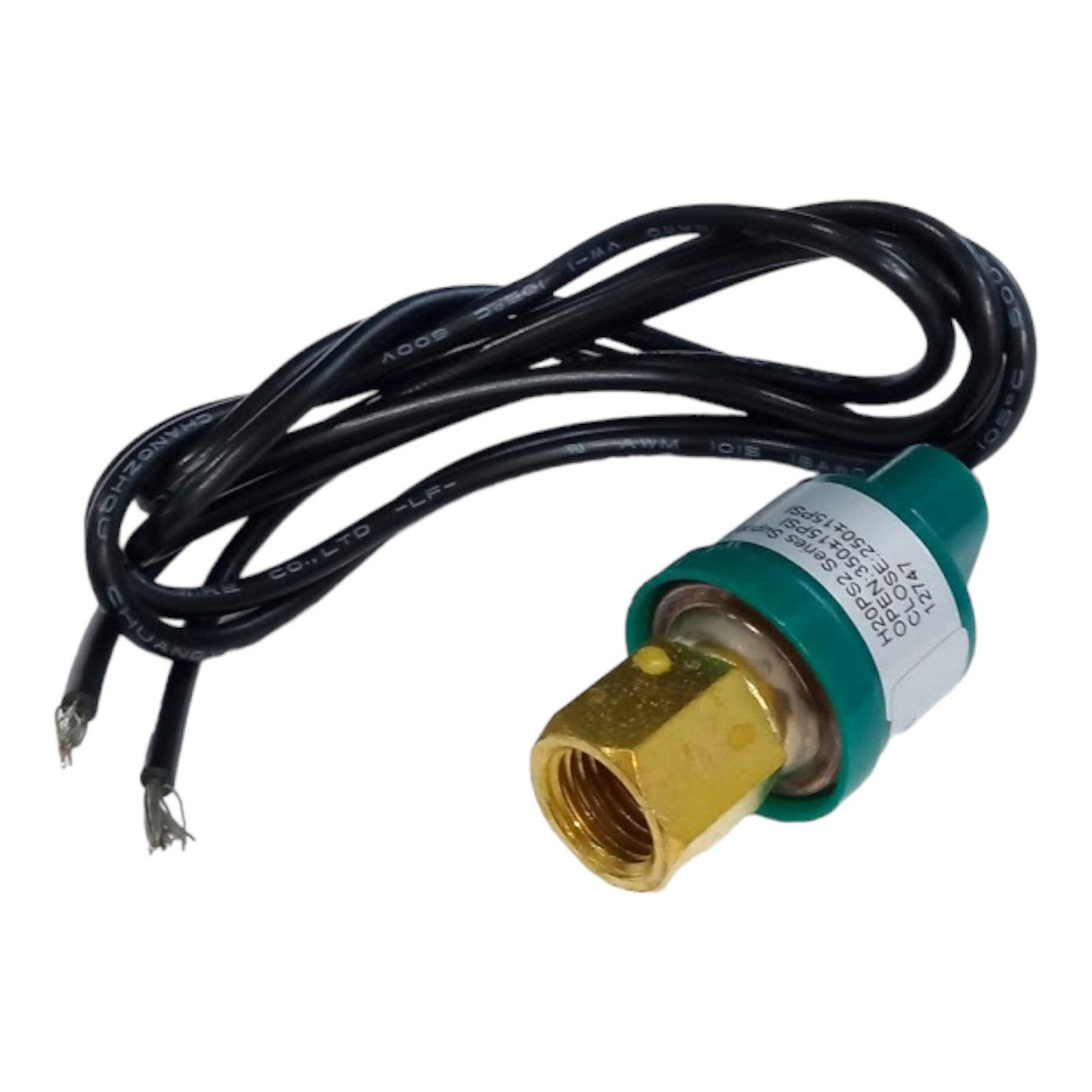

Supco SHP350250 High Pressure Switch 350 PSI Open 250 PSI Close

The Supco SHP350250 is a high pressure switch that uses a SPST switching action to open on high pressure, designed specifically for HVAC and refrigeration systems. This high pressure switch is a direct replacement for Robertshaw and Mars products and has excellent set point and repeatability.

Key Features:

• Pressure Switch, 350 PSI Open, 250 PSI Close
• Differential Pressure (PSI) +/-15
• ¼" SAE 45° female flare fitting with valve core depressor
• Automatic Reset
• Snap acting stainless steel hermetically sealed sensor
• Life at rated load: 100,000 cycles
• Rated Voltage 24/120/240 VAC @ 50/60 Hz
• Wire is 18 AWG, 18" long
• Operating temperature range: -31°F to 149°F (-35°C to 65°C)
• Max Pressure 700PSI
• Pressure Range (PSI): 0-650

This pressure switch features a compact, lightweight design for direct mounting and delivers exceptional set point repeatability and stability in demanding applications. UL® Recognized, CE® certified for professional HVAC, refrigeration, and industrial control applications.
