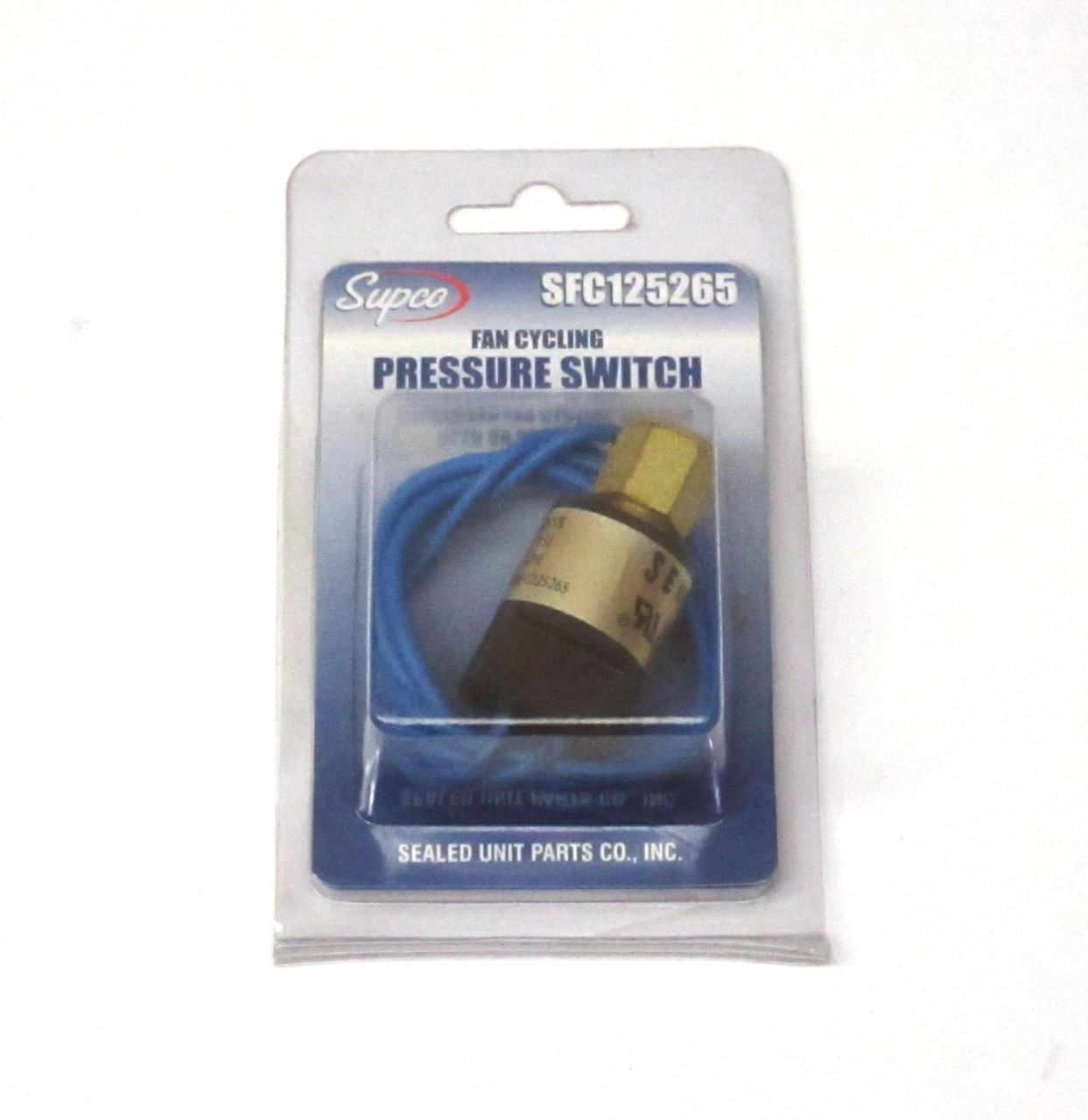

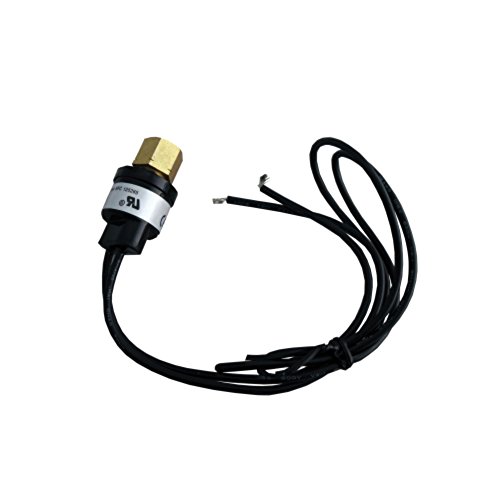

Supco SFC125265 Fan Cycling Pressure Switch 125-265 PSI

The Supco SFC125265 is a fan cycling low pressure switch designed for HVAC and refrigeration condenser fan control applications. This automatic reset pressure switch opens at 125 PSI and closes at 265 PSI, providing reliable fan cycling control to maintain optimal system pressure and performance.

Key Features:

• Opens at 125 PSI, closes at 265 PSI with ±15 PSI tolerance
• 1/4" SAE 45° female flare fitting with integrated valve core depressor
• SPST (Single Pole Single Throw) switch closes on pressure rise
• Automatic reset functionality for continuous operation
• Snap-acting stainless steel hermetically sealed sensor
• 18 AWG wire leads, 18" length for flexible installation
• Rated for 24/120/240 VAC at 50/60 Hz (6 RLA, 36 LRA)
• 100,000 cycle life at rated load
• Compact, lightweight design for direct mounting

Technical Specifications:

• Working pressure range: 0 to 650 PSI
• Burst pressure: 5,000 PSI
• Ambient temperature: -31°F to 176°F (-35°C to 80°C)
• Fluid temperature: -60°F to 250°F (-50°C to 120°C)
• UL Recognized and CE certified

This pressure switch is ideal for refrigeration systems, air conditioning units, and other applications requiring automatic condenser fan cycling control based on system pressure.
