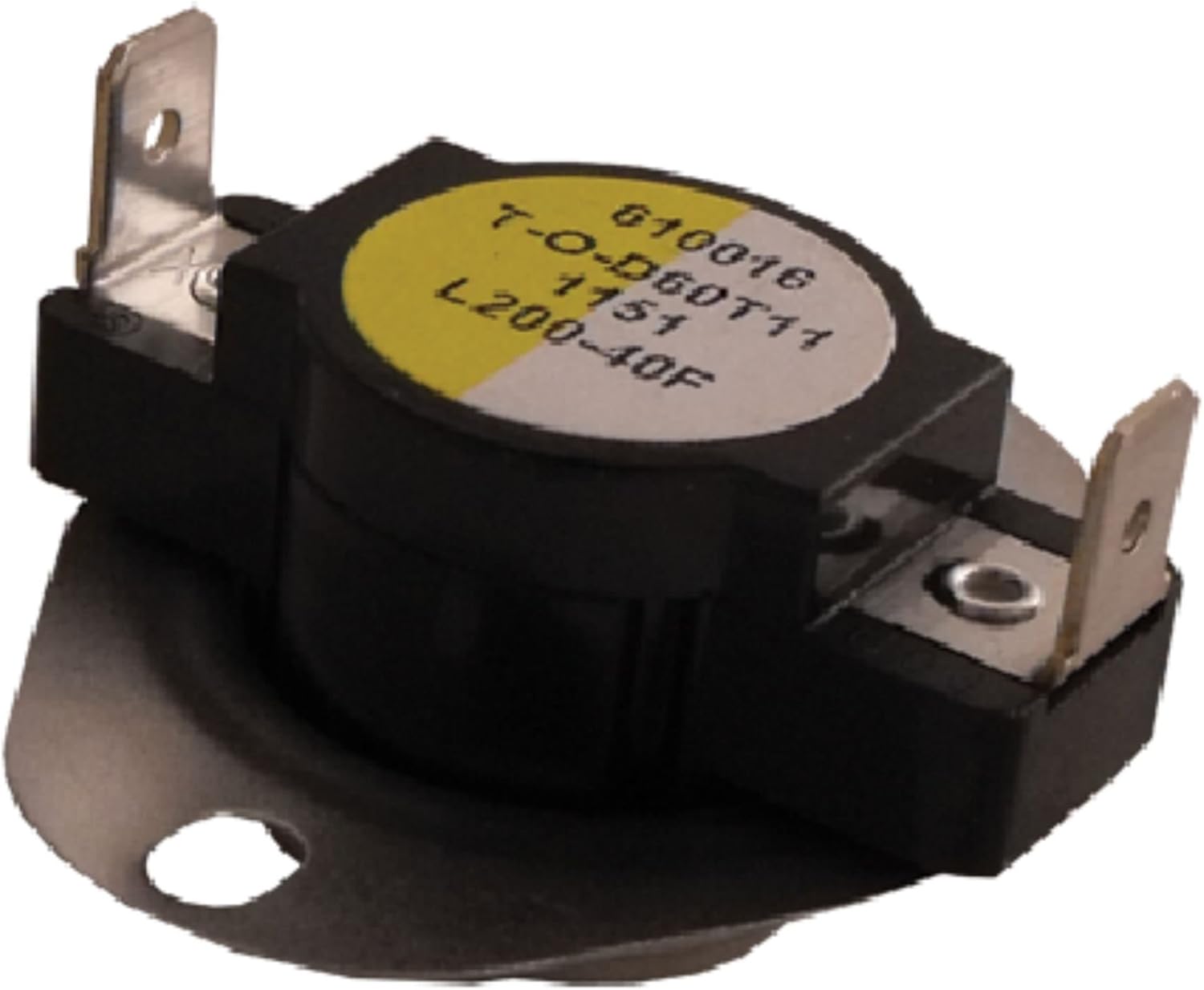

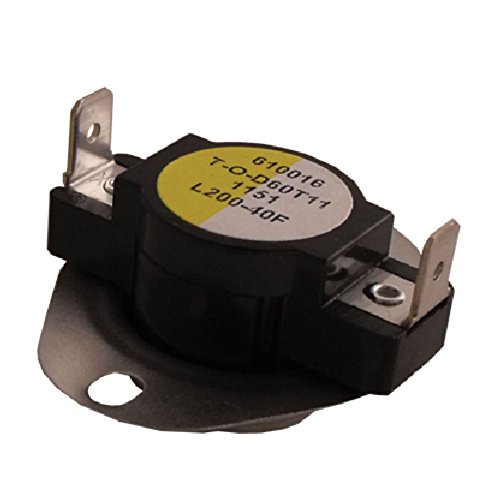

Supco L200 Bimetal Disc Limit Switch Thermostat 60T11 Style 610016

The Supco L200 is a reliable bimetal disc temperature control designed for HVAC systems, furnaces, and gas appliances. This 60T11 style (3/4" or 19mm) limit switch features automatic reset functionality and opens on temperature rise to provide critical overheat protection.

Temperature Control Specifications:

• Opens at 200°F to prevent overheating
• Closes at 160°F for automatic reset
• 40°F differential temperature range
• Single pole, single throw (SPST) configuration

Electrical Ratings:

• Handles loads up to 25 amps at 240VAC
• Full load amps (FLA) at 120VAC: 10A
• Rated load amps (RLA) at 120/240VAC: 25A
• 1/4" quick disconnect terminals for easy installation

Construction and Design:

• Enclosed metal construction with black face and silver housing
• Provides superior protection compared to exposed designs
• Compact 3/4" (19mm) size fits standard applications

The L-Series thermostat offers proven reliability in a cost-effective design, making it ideal for furnace limit control, gas fireplace safety systems, and other heating equipment requiring automatic temperature-based shutoff. Also known as part number 610016 and cross-references to style 0848.
