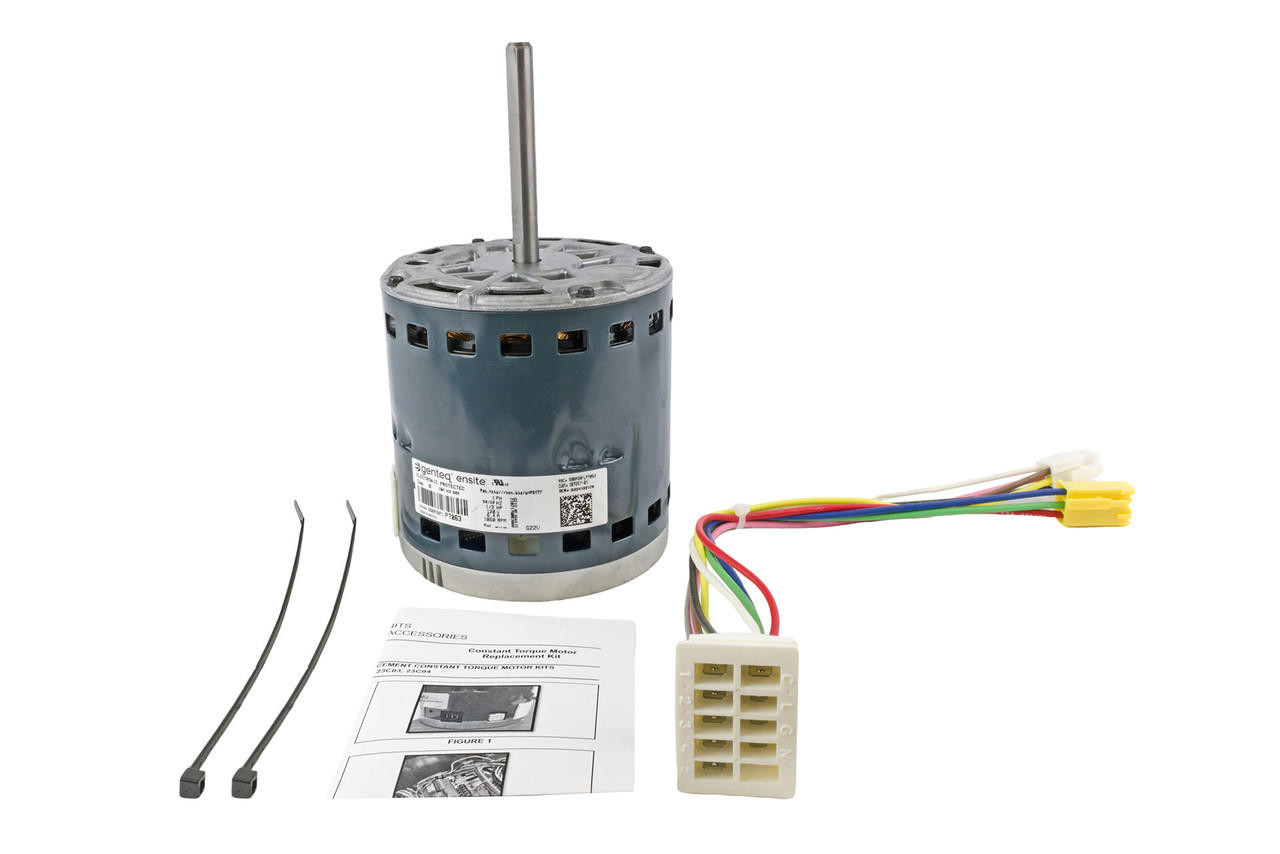

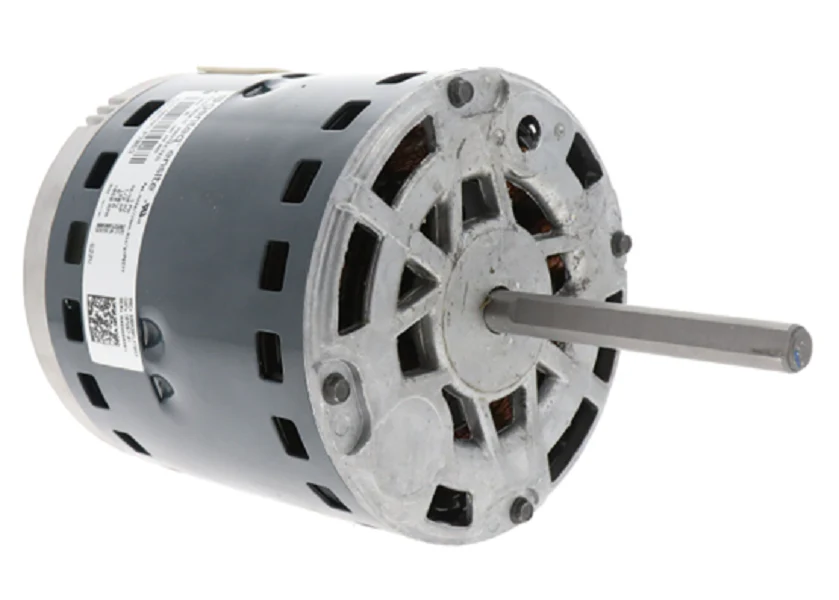

Lennox 23V71 ECM Constant Torque Blower Motor 1/2 HP 120V

The Lennox 23V71 is a pre-programmed ECM (electronically commutated motor) constant torque blower motor designed for residential and light commercial HVAC systems. This genuine OEM replacement motor delivers reliable performance for Lennox furnaces and air handlers.

Key Specifications:

• 1/2 horsepower ECM constant torque motor
• 120 VAC, 1 phase, 60 Hz operation
• Variable speed operation: 0-1100 RPM
• 5-speed pre-programmed control
• 6.4 amp draw for efficient operation
• 1/2 inch diameter x 4 inch shaft
• Frame size 48 with belly band mounting
• Reversible rotation (CCW/CW)

Features and Benefits:

• Ensite technology for smooth, quiet operation
• Pre-programmed for plug-and-play installation
• Energy-efficient ECM design reduces operating costs
• Electronically protected against overload and overheating
• Replaces OEM part number 624623-01

This motor is manufactured by Genteq (model 5SBA39FL) to Lennox specifications. Professional installation is recommended to ensure proper operation and system performance. Note: If replacing an existing Ensite motor, the adapter harness is not required.
