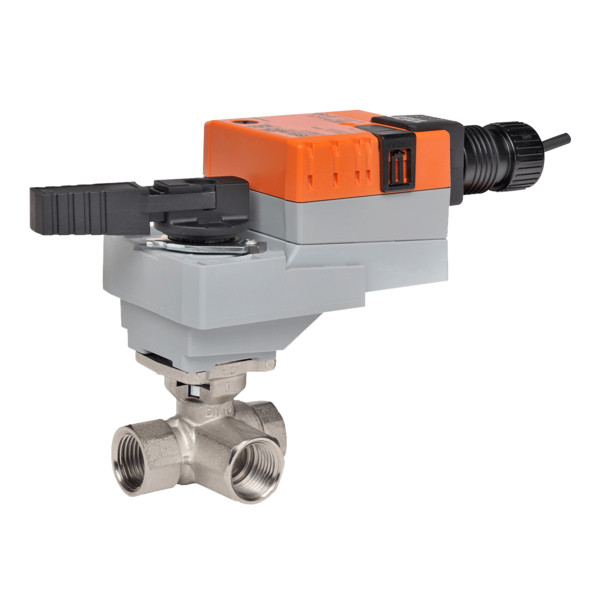

Belimo B320+LRB24-3-S Characterized Control Valve Stainless Steel - 3-Way 3/4 Cv14

Manufacturer

Part Number

B320+LRB24-3-S
Sale Price

$395.54

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B320+LRB24-3-S is a 3-way 3/4" characterized control valve assembly with a Cv rating of 14 (28 GPM at 4 psi differential pressure). This complete assembly features stainless steel trim construction and comes pre-assembled with an LRB24-3-S non-spring return electric actuator for reliable HVAC control applications.

Valve Specifications:

  • 3/4" female NPT connection
  • Cv rating: 14 (28 GPM at 4 psi differential pressure)
  • Forged brass body with nickel plating, stainless steel ball, PTFE Teflon seals, and Tefzel characterizing disc
  • Media compatibility: Hot or chilled water, up to 60% glycol
  • Temperature range: 0° to 250°F (-18° to 120°C)
  • Maximum differential pressure: 30 psi
  • Pressure rating: 600 psi (3/4" three-way)

Actuator Features:

  • 24VAC/DC operation, non-spring return (non-fail-safe)
  • On/Off and floating point control
  • One SPDT auxiliary switch for status monitoring
  • 45 in-lb torque output
  • 1.5W power consumption during operation
  • Direct-coupled design for reliable, maintenance-free operation

Key Benefits:

  • Equal percentage flow characteristic for precise control
  • Enhanced control stability with the characterizing disc
  • Prevents control loop hunting, ensuring longevity and optimizing energy consumption
  • Comparable Cv values to globe valves of the same size

Ideal for air handling units, fan coil units, unit ventilators, VAV box re-heat coils, and bypass loops in hydronic HVAC systems with variable flow requirements. Backed by Belimo's 5-year warranty.
