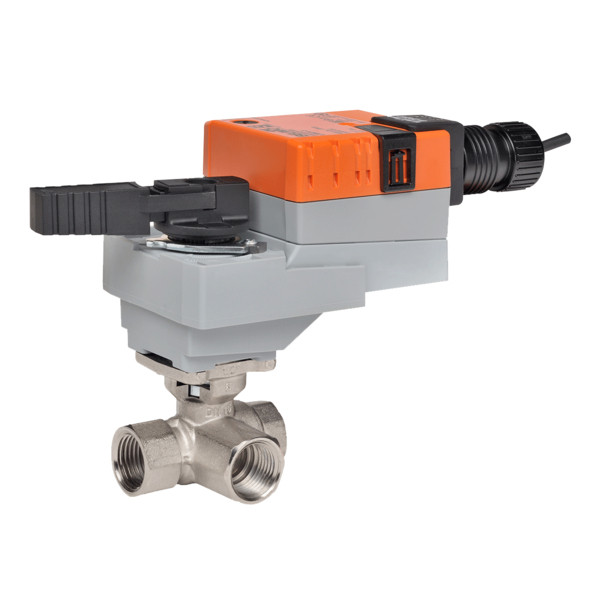

Belimo B317+LRB24-3-S Characterized Control Valve Assembly - 3/4 3-Way

Manufacturer

Part Number

B317+LRB24-3-S
Sale Price

$389.87

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B317+LRB24-3-S is a professional-grade characterized control valve assembly designed for precise control of hot or chilled water in HVAC systems. This complete assembly combines a B317 3-way characterized control valve with an LRB24-3-S non-spring return actuator for reliable on/off and floating point control.

Valve Specifications:

  • 3/4" NPT threaded connections for easy installation
  • 3-way configuration for diverting or mixing applications
  • Cv rating of 4.7 (9.4 GPM at 4 psi pressure drop)
  • Stainless steel ball and stem for durability and corrosion resistance
  • Equal percentage flow characteristic for precise control
  • Characterizing disc enhances control stability and prevents hunting

Actuator Specifications:

  • Non-spring return (non-fail-safe) operation
  • 24V AC/DC universal voltage
  • 45 in-lb torque rating
  • On/off and floating point control modes
  • Single pole double throw (SPDT) switching

Applications:

  • Air handling units and fan coil units
  • Heating and cooling coil regulation
  • Unit ventilators and VAV box reheat coils
  • Bypass loops in hydronic systems
  • Variable flow hydronic systems

The factory-assembled design ensures proper actuator mounting and eliminates field assembly errors. Belimo's characterized control valve technology provides comparable Cv values to globe valves while reducing the need for multiple pipe reductions, simplifying installation and improving system efficiency.
