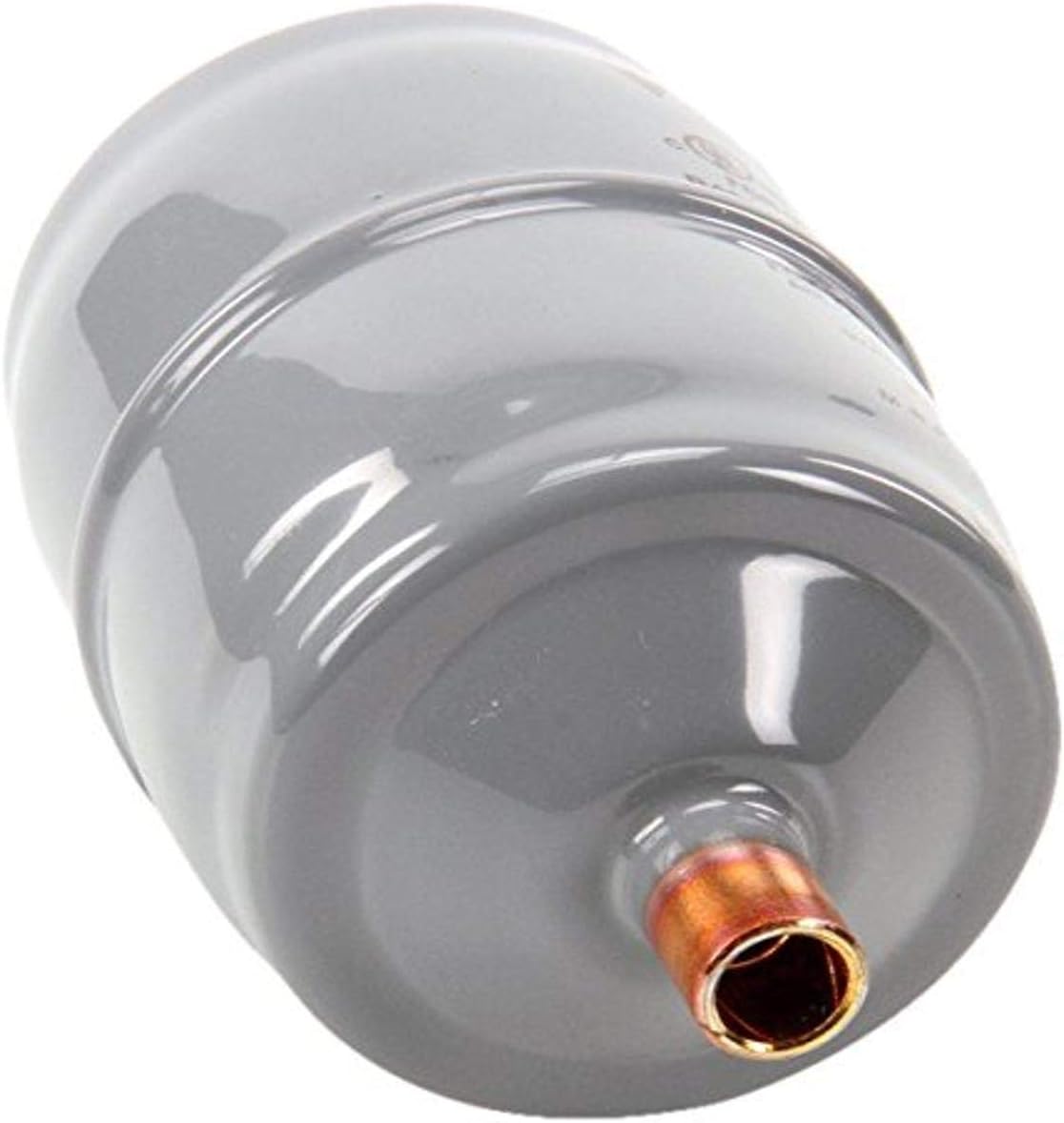

Sporlan Controls 800042 SF-285-F 5/8" SAE Suction Line Filter Drier

The Sporlan Controls SF-285-F is a sealed suction line filter drier designed to provide excellent filtration of solid contaminants in the suction line just ahead of the compressor. This unit protects critical refrigeration and air conditioning system components from dirt, moisture, acids, and other harmful contaminants.

Key Features:

• 5/8" SAE flare connection size for easy installation
• 28 cubic inch filter area with 8.78" length and 3" diameter
• Rated for systems up to 6.4 tons capacity
• Built-in bypass relief device opens if filter plugs to maintain minimum pressure drop
• Full flow design minimizes pressure drop across the filter
• Factory tested to ensure trouble-free performance
• Sufficient filter media area and depth for excellent filtration efficiency

The SF-285-F filter drier removes solid contaminants from refrigeration piping following installation, protecting the compressor, expansion valves, and other close-tolerance components. Suitable for refrigeration, air conditioning, and transportation applications. Maximum rated pressure is 400 psi.
