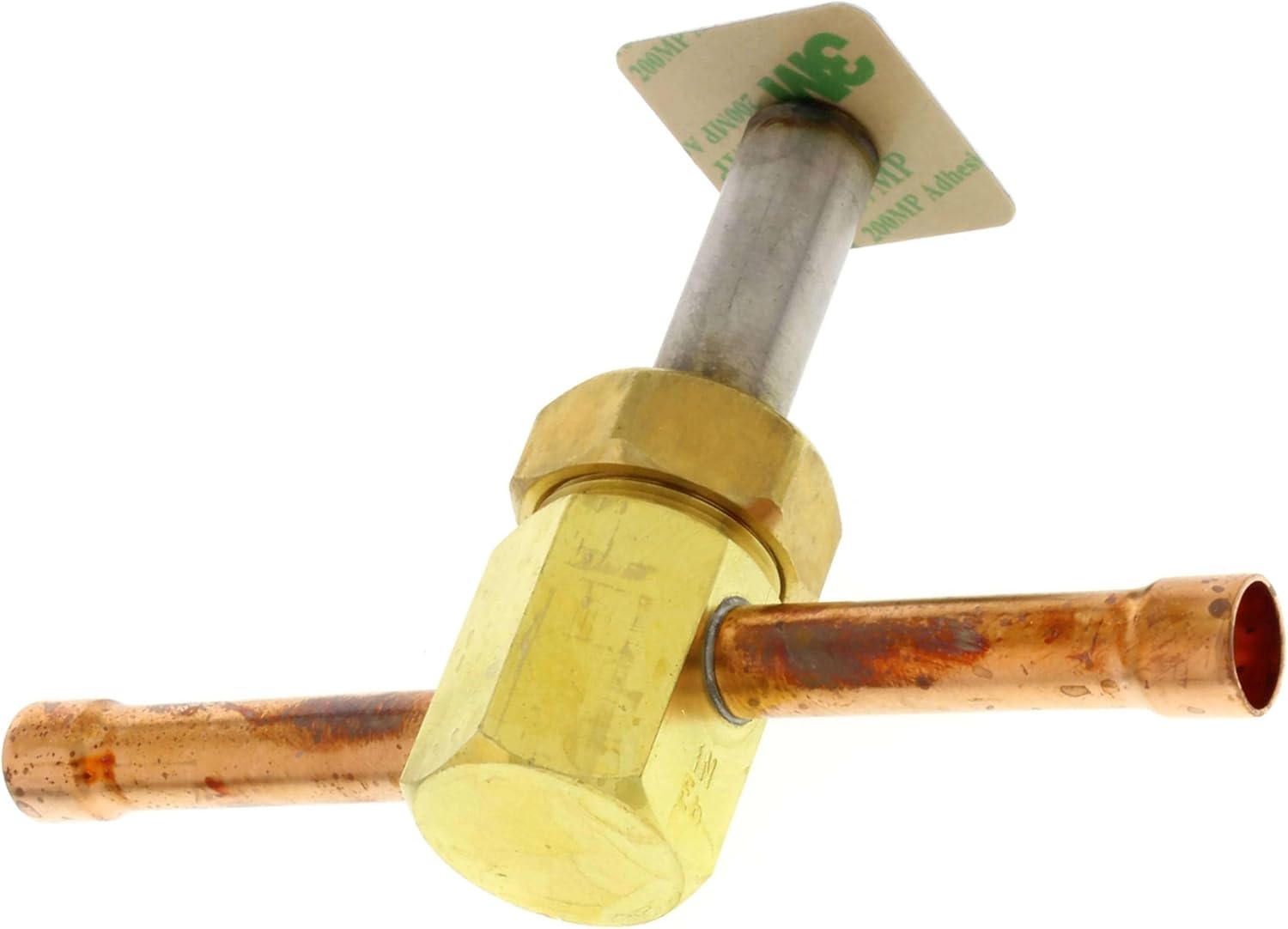

Sporlan Controls 4077-00 7/8" ODF Normally Closed Solenoid Valve Less Coil

The Sporlan Controls 4077-00 is a high-pressure, normally closed solenoid valve designed for demanding refrigeration and air conditioning applications. This E19 Series valve features pilot-operated disc construction, making it ideal for suction line service where only 1 psi differential pressure is required for full operation.

Key Specifications:

• Connection Size: 7/8" ODF (extended solder connections)
• Port Orifice: 19/32" diameter
• Configuration: 2-way, normally closed (N/C)
• Maximum Working Pressure: 700 psi high-pressure rated
• Differential Pressure: 300 psi AC, 250 psi DC
• Compatible Coil: MKC-2 or MKC-1 (sold separately)
• Replaces: E19S270-HP

Construction Features:

• Forged brass body for superior durability
• Stainless steel stem with synthetic seating material for tight shutoff
• Metal seal with synthetic coating to minimize external leaks
• Manual lift stem for manual operation
• Extended copper connections allow installation without disassembly
• Factory tested for leak-free performance

This valve can be mounted horizontally, vertically, or on its side, offering flexible installation options. Compatible with various refrigerants including R-22, R-407C, and R-410A. The E19 Series design allows brazing with low or no-silver content brazing alloy without requiring valve disassembly. Manufactured by Parker Sporlan, a division of Parker Hannifin with over 80 years of HVACR component expertise.
