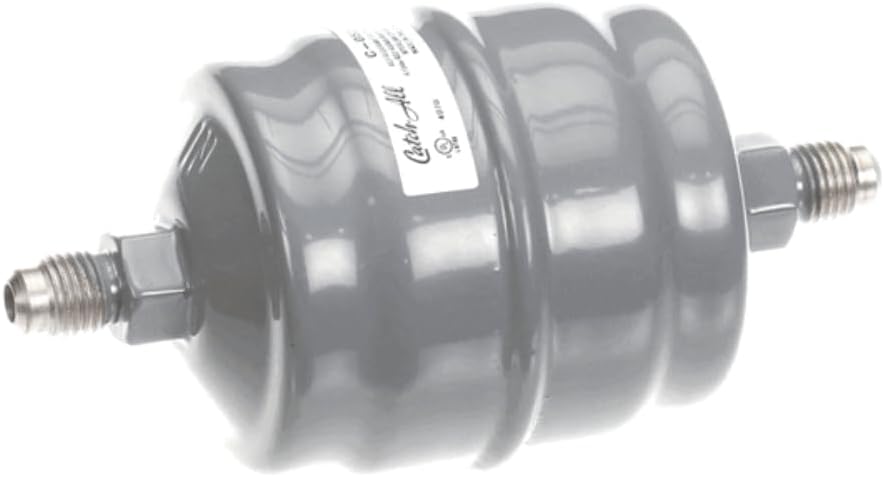

Sporlan Controls 400200 C-052 Liquid Line Filter Drier 1/4" SAE Flare

The Sporlan Controls 400200 (model C-052) is a high-performance liquid line filter drier from the renowned Catch-All series, designed to provide superior contamination control in HVAC and refrigeration systems. This sealed model filter drier is engineered for residential and commercial applications with cooling capacities ranging from 1/3 to 2 tons.

Advanced Filtration Technology:

The C-052 features a unique molded porous core constructed from a proprietary blend of highly effective desiccants. This innovative design effectively removes moisture by adsorbing and retaining it deep within the desiccant granules, while simultaneously capturing acids and solid contaminants including scale, solder particles, carbon, sludge, and dirt—all with negligible pressure drop.

Key Specifications:

• 1/4" SAE flare connections (inlet and outlet)
• 5 cubic inch desiccant capacity
• Rated for 1/3 to 2 ton systems
• Dimensions: 4.72" length x 2.44" diameter
• Maximum operating temperature: 300°F
• Compatible with HCFC, HFC, HFO, and HC refrigerants

Applications:

Ideal for residential and commercial HVAC systems, food service refrigeration, commercial refrigeration, and specialty refrigeration applications. The C-052 protects expensive system components including expansion valves and compressors from moisture, acids, and debris, ensuring long system life, optimal efficiency, and reliable performance.
