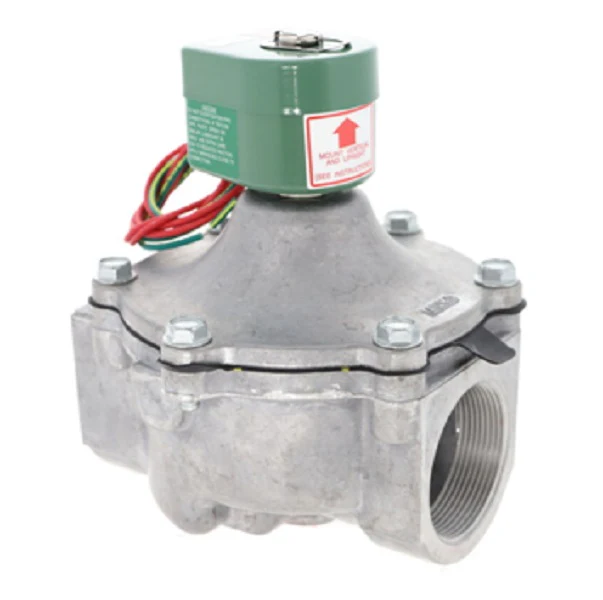

Asco 8215B80 2-Way Gas Solenoid Valve 2 Inch Normally Closed 120V

The Asco 8215B80 is an aluminum body, lightweight gas safety shutoff valve designed for high flow, low-pressure air and gas service applications. This 2-way normally closed pilot-operated solenoid valve is designed to handle liquified petroleum gases including propane in both liquid and gaseous states.

Key Specifications:

• 2 inch NPT connection size
• 120VAC operation at 50/60Hz with 15.4W power consumption
• Flow coefficient (Cv) of 60 with gas capacity up to 3,251,000 BTU/hr
• Operating pressure range: 0-25 PSI
• NEMA 1 enclosure with Class F coil insulation
• Weight: 3.0 lbs

Construction and Performance:

• Rugged aluminum body with steel and stainless steel trim and internal parts
• NBR (Nitrile Butadiene Rubber) seals for reliable sealing
• Pilot-operated construction works from zero pressure differential with resilient soft seating for tight shutoff
• Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles
• Temperature range: 32°F to 125°F ambient, 125°F maximum fluid temperature

The 8215 Series is ideal for vacuum service, heating equipment applications, and oxygen service where reliable safety shutoff is required. This normally closed valve is UL approved as a safety shutoff valve, meeting industry standards for gas valve applications.
