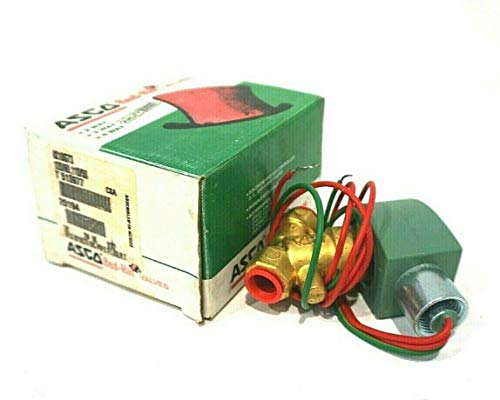

Asco 8210G73 Brass Solenoid Valve Normally Closed - 3/8 2-Way

The Asco 8210G73 is a pilot-operated, normally closed 2-way solenoid valve designed for reliable performance in general service applications. Part of the renowned RedHat series, this valve features a durable brass body construction and is engineered for use with air, inert gases, and water systems.

Key Specifications:

• 3/8 inch pipe size with 3/8 inch orifice
• Brass body material for corrosion resistance
• 1.5 Cv flow coefficient for efficient fluid control
• Rated for 5-150 PSI air service and 1-125 PSI water service
• Ultem® piston construction for enhanced durability
• Operating temperature range: 32°F to 125°F (0°C to 52°C)

Features and Benefits:

• Wide range of pressure ratings and resilient materials provide long service life and low internal leakage
• Watertight RedHat II enclosure with Types 1, 2, 3, 3S, 4, and 4X protection
• No minimum operating pressure required and may be mounted in any direction
• UL and CSA certified for safety compliance
• One-piece epoxy molded coils for reliable electrical performance

Applications:

Industrial applications include car wash equipment, laundry equipment, air compressors, industrial water control, and pumps. This versatile valve is ideal for controlling air, inert gases, and water in a wide variety of commercial and industrial settings.

Important Note:

Coil voltage must be specified when ordering. Verify that system pressure, temperature, and media are within the valve's rated specifications before installation.
