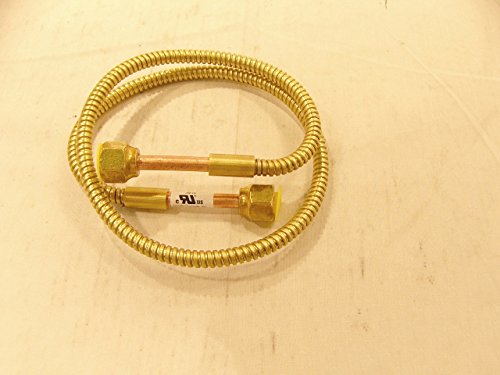

Johnson Controls SEC99AA-24 UltraCap Armored Capillary 24 Inch with Schrader Valve Depressors

The Johnson Controls SEC99AA-24 UltraCap Armored Capillary is a precision-engineered pressure connection component designed for use in refrigeration and air conditioning applications. This 24-inch capillary features a 0.062-inch internal diameter with 1/4-inch SAE female flare fittings on both ends.

Key Features:

• Brass armor sleeve provides superior resistance to abrasion caused by vibration
• Copper capillary construction prevents refrigerant effusion to the environment
• Small-orifice design minimizes pressure pulsation for stable operation
• Includes two straight ends with breakaway Schrader valve depressors
• Compatible with all common non-corrosive refrigerants
• Maximum working pressure: 600 PSI
• Temperature range: -50°F to 350°F
• UL and C-UL Recognized (SA9457), CCN SFCS2, CCN SFCS8 certified

This UltraCap armored capillary is designed for use with 1/4-inch SAE male flare fitting connectors, such as those found on Johnson Controls/PENN lines of pressure-actuated controls. The integral Schrader valve depressors allow for convenient pressure testing and refrigerant charging in HVAC systems.
