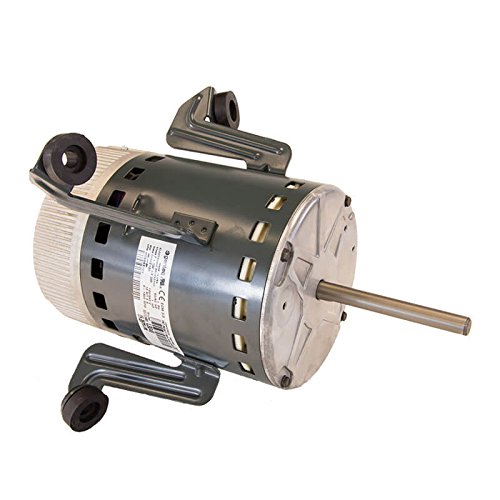

Carrier 58MV660005 ECM 3.0 Variable Speed Blower Motor with Harness 1 HP

The Carrier 58MV660005 is a genuine OEM variable speed ECM (Electronically Commutated Motor) blower motor assembly designed for residential heating and cooling systems. This complete motor kit includes the motor module and wiring harness, providing everything needed for a straightforward replacement installation.

Key Specifications:

• 1 HP motor with dual voltage capability (120/240V, 50/60 Hz)
• Variable speed operation from 0 to 1300 RPM
• Current draw: 12.8 amps at 120V / 7.4 amps at 240V
• 5 5/8 inch diameter (Frame 48Y) with 1/2 inch diameter shaft extending 3.5 inches
• Multi-directional rotation capability
• Single phase operation

ECM Technology Benefits:

• Superior energy efficiency compared to standard PSC motors
• Precise airflow control for optimal system performance
• Quieter operation with reduced vibration
• Variable speed capability adjusts to system demands

This motor replaces Carrier part numbers HD52SE122 and HD52SE120, as well as Genteq (GE) model 5SME39SXL3048. The ECM 3.0 motor is manufactured by GE Genteq to exact Carrier specifications, ensuring reliable performance and compatibility with Carrier, Bryant, and Payne furnace and air handler systems.

Installation Note: Always inspect the blower wheel on your blower assembly, as bad or unbalanced blower wheels can cause premature motor failure due to vibration.
