Trane MOT19352 Variable Speed ECM Condenser Fan Motor 1/3 HP 208-230V

Manufacturer

Part Number

MOT19352
Black Friday Price

$770.51

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

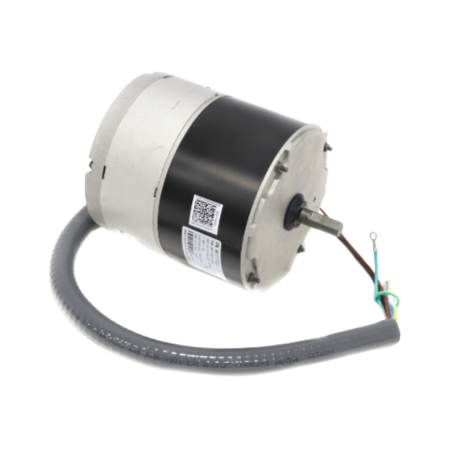

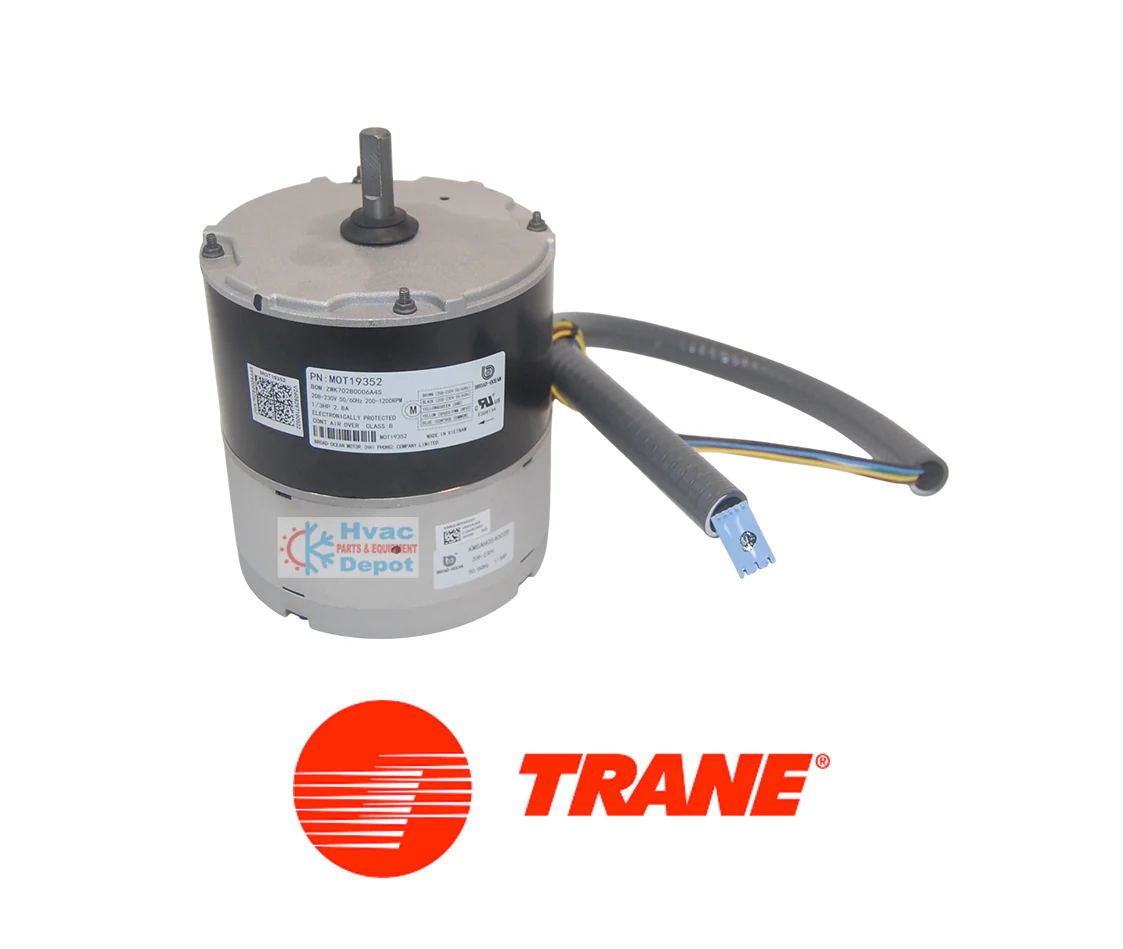

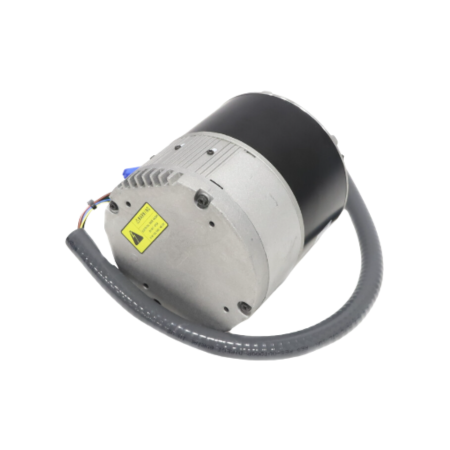

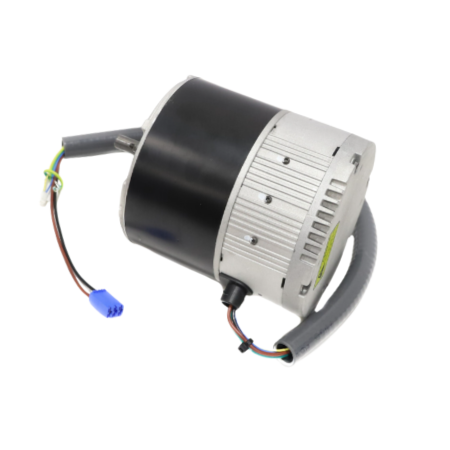

The Trane MOT19352 is a premium OEM variable speed ECM (Electronically Commutated Motor) designed for outdoor condenser fan applications in Trane and American Standard HVAC systems. This single-phase motor is rated at 2.8A, 1/3 HP, 208–230V, and 50/60 Hz, delivering efficient and reliable performance for residential and commercial air conditioning and heat pump units.

Key Specifications:

  • Power: 1/3 Horsepower (HP)
  • Voltage: 208-230V AC, Single Phase
  • Current Draw: 2.8 Amps
  • Frequency: 50/60 Hz
  • Speed Range: 200–1200 RPM with counterclockwise rotation (CCWLE)
  • Frame: 48-frame with totally enclosed air-over (TEAO) design
  • Insulation: Class B
  • Dimensions: 7.82" x 5.63" x 6.14"
  • Design Torque: 26.7 lb-ft

Advanced ECM Technology:

Unlike fixed-speed motors, the MOT19352 can adjust its speed based on system demands, which translates to quieter operation, improved efficiency, and reduced energy consumption. The variable speed capability allows the motor to optimize airflow and cooling performance while minimizing electrical consumption and operating noise.

Outdoor-Rated Durability:

The motor is built for harsh environments with an outdoor enclosure rated for temperatures ranging from -20°F to 140°F and insulation class B for added durability. It is UL Recognized, ensuring compliance with safety standards.

Installation Features:

The vertical shaft mounts easily with screws, and the motor operates with counter-clockwise (CCW) rotation. The MOT19352 directly replaces the Trane MOT16196 motor, making it ideal for system upgrades or maintenance replacements.

Cross-Reference Part Numbers:

Replaces: MOT16196, MOT16195, MOT19351, ZWK702B0006A4S, D159882P03, D156799P03, D156799P02

Compatible Systems:

The MOT19352 variable-speed ECM condenser fan motor is compatible with various Trane and American Standard outdoor air conditioning and heat pump units, particularly high-efficiency models in the 4TWV, 4TTV, 4A7V, and 4A6V series, typically in 2-ton to 5-ton capacities.

This genuine Trane OEM motor ensures optimal compatibility, performance, and longevity for your HVAC system.

.
