Johnson Controls MP8000-6002 Mounting Kit for V-9502-95 Pneumatic Valve Actuator Positioner

The Johnson Controls MP8000-6002 is a complete mounting kit designed specifically for installing the V-9502-95 pneumatic valve actuator positioner onto MP8000 Series pneumatic valve actuators. This essential accessory kit provides all the hardware required for proper positioner installation and operation.

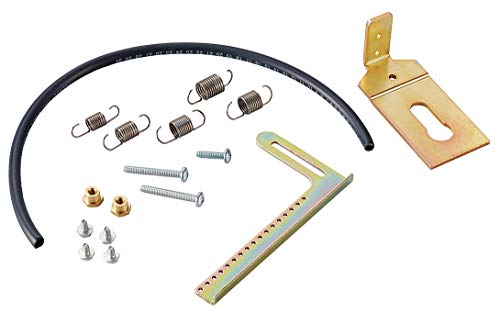

Kit Contents:

• Complete mounting hardware including brackets, bolts, and linkage components
• Six calibrated positioner springs for various control ranges
• All necessary fasteners and connection hardware
• Gasket and installation components

Application:

This mounting kit is specifically engineered for use with MP8000 Series actuators when paired with VG2000 and VG7000 Series control valves. The V-9502-95 positioner provides precise pneumatic control for applications requiring stable, accurate valve positioning in response to pneumatic control signals. The included springs allow for flexible configuration to match different control pressure ranges from 3 to 13 psi.

Features:

• Complete hardware solution eliminates need to source individual components
• Six springs provide versatility for different operating ranges and applications
• Designed for use with corrosion-resistant actuator components rated for -20°F to 150°F ambient temperatures
• Compatible with maximum control pressures up to 25 psig
• Supports chilled water, hot water, and steam valve control applications

This kit is required when ordering the V-9502-95 positioner separately, as the positioner is supplied without springs and mounting hardware.
