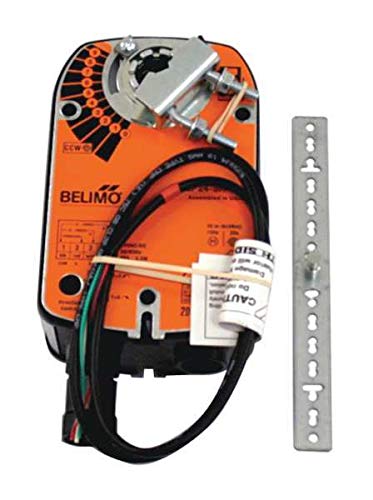

Belimo LF24-SR Spring Return Damper Actuator in-lb - 35 24V 2-10VDC

Manufacturer

Part Number

LF24-SR
Sale Price

$305.19

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo LF24-SR US is a fail-safe spring return damper actuator designed for modulating control of HVAC dampers in commercial and industrial building automation systems. This actuator delivers 35 in-lb (4 Nm) of torque and operates on AC/DC 24V power, making it suitable for dampers up to approximately 8.8 square feet.

Key Features:

  • 95° rotation with graduated position indicator showing 0 to 95°
  • Brushless DC motor controlled by Application Specific Integrated Circuit (ASIC) and microprocessor
  • Responds to 2-10 VDC control input, or 4-20 mA with addition of 500Ω resistor
  • Provides 2-10 VDC feedback signal for position indication
  • 150 second motor run time, less than 25 second spring return
  • Stall-protected at all angles without mechanical end switches
  • Reduced power consumption in holding mode
  • Universal clamp for direct mounting to damper shafts 3/8" to 1/2" diameter

Technical Specifications:

  • Torque: 35 in-lb (4 Nm) motor and fail-safe
  • Voltage: AC/DC 24V (range AC 19.2-28.8V / DC 21.6-28.8V)
  • Power consumption: 2.5W running, 1W holding
  • Operating temperature: -22°F to 122°F (-30°C to 50°C)
  • NEMA 2 enclosure, IP54 rated
  • UL 2043 compliant for air plenum use
  • Galvanized steel housing, maintenance-free operation

The LF24-SR features intelligent microprocessor control that provides constant rotation rate independent of torque load and precise fail-safe positioning. The actuator is cULus listed with a 5-year warranty and suitable for installation in air plenums per NEC Section 300.22(C). Compatible with various Belimo accessories including crank arms, mounting brackets, auxiliary switches, and shaft extensions for versatile installation options.
