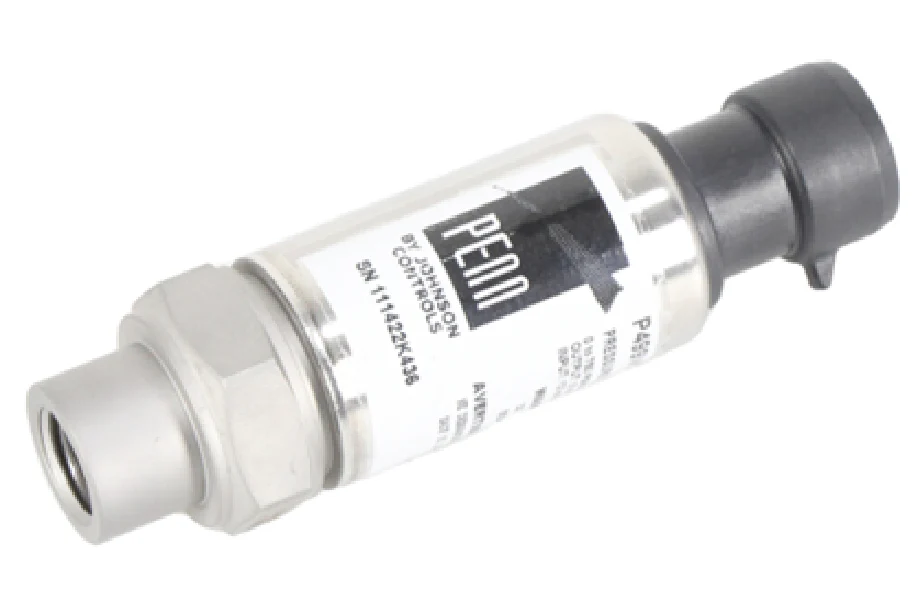

Johnson Controls P499VCP-107 Electronic Pressure Transducer 0-750 PSI 0-10 VDC

The Johnson Controls P499VCP-107 is a compact, economical, and rugged electronic pressure transducer designed for commercial refrigeration and air conditioning applications. This high-quality transducer provides an accurate 0-10 VDC output signal across a 0-750 PSI pressure range. It features a 1/4" SAE 45° internal thread with depressor for easy integration into hydraulic, pneumatic, or HVAC systems.

Key Features:

• Environmentally protected electronics with stainless steel construction
• Digitally compensated for high accuracy over a broad temperature range, resisting wide ambient temperature swings, high humidity, condensation, and icing
• Pressure port machined from solid 17-4PH stainless steel with no O-rings, organic materials, or welds exposed to pressure media for leak-proof, all-metal sealed pressure system
• 1% total error band for high-accuracy performance
• Slender body design facilitates use of deep-socket wrenches for ease of installation with zero turning radius required

The P499 Series transducers operate with any corrosive or non-corrosive pressure medium compatible with 17-4PH stainless steel, including water, condensate, carbon dioxide, glycol, most refrigerants (including ammonia), and many other compatible fluids and gases. This individual pack includes the transducer only; wire harness must be ordered separately.
