Johnson Controls MP8000-6325 Diaphragm and Seal Kit for MP82/MP83 Pneumatic Actuators

Manufacturer

Part Number

MP8000-6325
Black Friday Price

$134.77

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Johnson Controls MP8000-6325 is a complete diaphragm and seal replacement kit designed specifically for MP82 and MP83 Series pneumatic valve actuators. This essential maintenance kit ensures optimal actuator performance and extends the service life of your HVAC control system.

Key Features:

  • 25 square inch effective diaphragm area for MP82/MP83 actuators
  • Complete kit includes diaphragm, seal, and plastic sleeve for comprehensive repair
  • Molded synthetic rubber diaphragm provides constant effective area throughout actuator stroke
  • Designed for hot water, chilled water, and steam control valve applications
  • Compatible with VG7000 and VG2000 series control valves when used with proper mounting kits

Kit Includes:

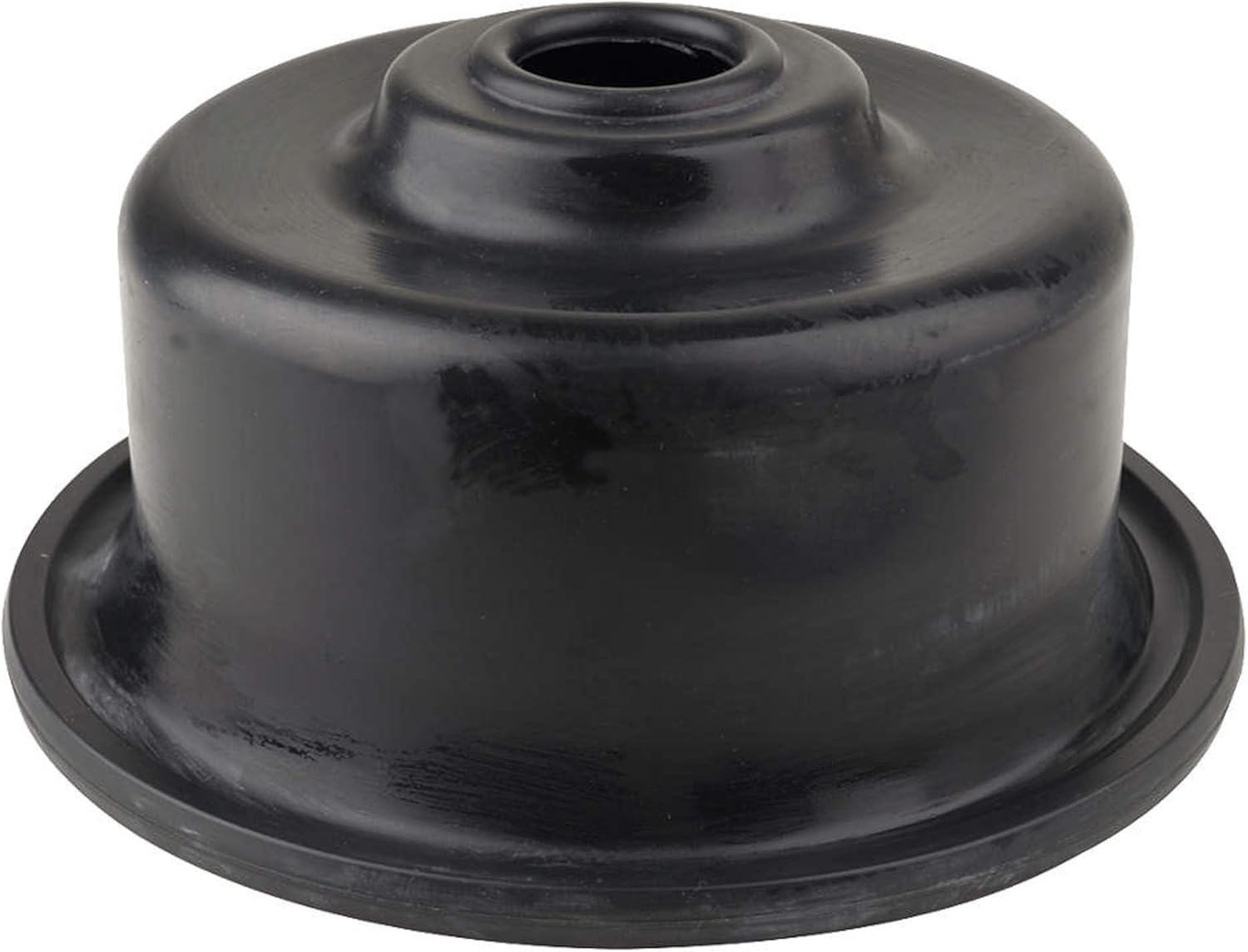

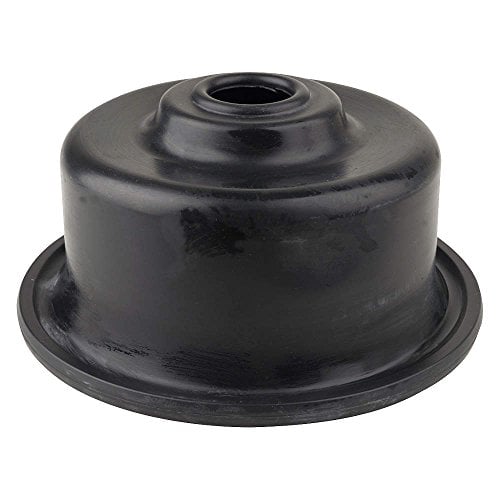

  • One diaphragm with 25 sq in effective area
  • One seal (5/8 inch internal diameter, 7/8 inch outside diameter, 1/8 inch thick)
  • One plastic sleeve (41/64 inch inside diameter)

This replacement kit is compatible with CDV156B model actuators. For installation, the MP8000-6012 repair tool kit is recommended but sold separately. Manufactured in Mexico to Johnson Controls' stringent quality standards.
