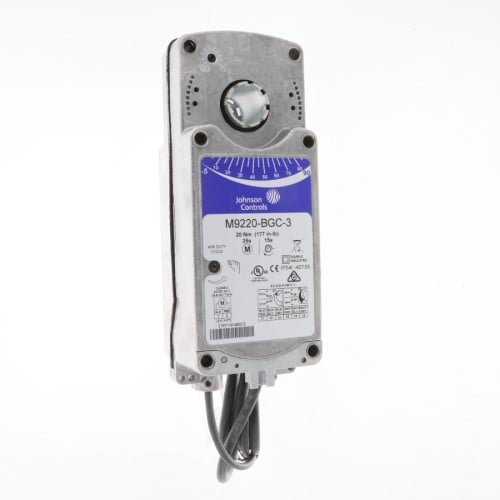

Johnson Controls M9220-BGC-3 Spring Return Damper Actuator 24V 177 lb-in On/Off with 2 Auxiliary Switches

Manufacturer

Part Number

M9220-BGC-3
Black Friday Price

$439.52

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Johnson Controls M9220-BGC-3 is a direct-mount, spring return electric damper actuator designed for HVAC applications requiring precise control of return air, exhaust air, or outside air dampers. This robust actuator delivers 177 lb-in (20 N·m) of torque in both running and spring return modes, making it ideal for commercial and industrial building automation systems.

Power and Control:

  • Operates on 24VAC (50/60 Hz) or 24VDC power
  • Two-position (on/off) control signal
  • 24-57 second runtime for full stroke
  • Automatic spring return on power loss for fail-safe operation

Installation Features:

  • Direct-coupled design eliminates damper linkage requirements

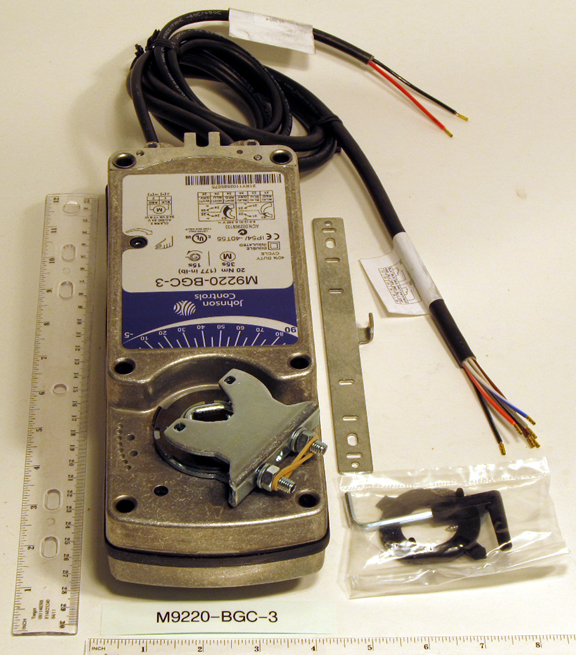

  • Includes standard shaft clamp for easy installation on 1/2" to 3/4" round shafts (12-19mm) or 3/8" to 1/2" square shafts (10-14mm)
  • Optional M9220-600 Jackshaft Coupler Kit available for larger shaft sizes
  • Bidirectional rotation capability
  • NEMA 2 (IP54) rated aluminum enclosure for durability

Auxiliary Switches:

  • Two SPDT (single pole, double throw) line voltage auxiliary switches
  • Indicates end-stop position or performs switching functions within rotation range
  • 48" integral halogen-free cable with wire leads

Certifications: UL Listed (File #E22734), CE marked, CSA approved. The M9220-BGC-3 can be mounted in tandem configurations using the M9000-158 kit to double torque output to 354 lb-in when higher force is required.
