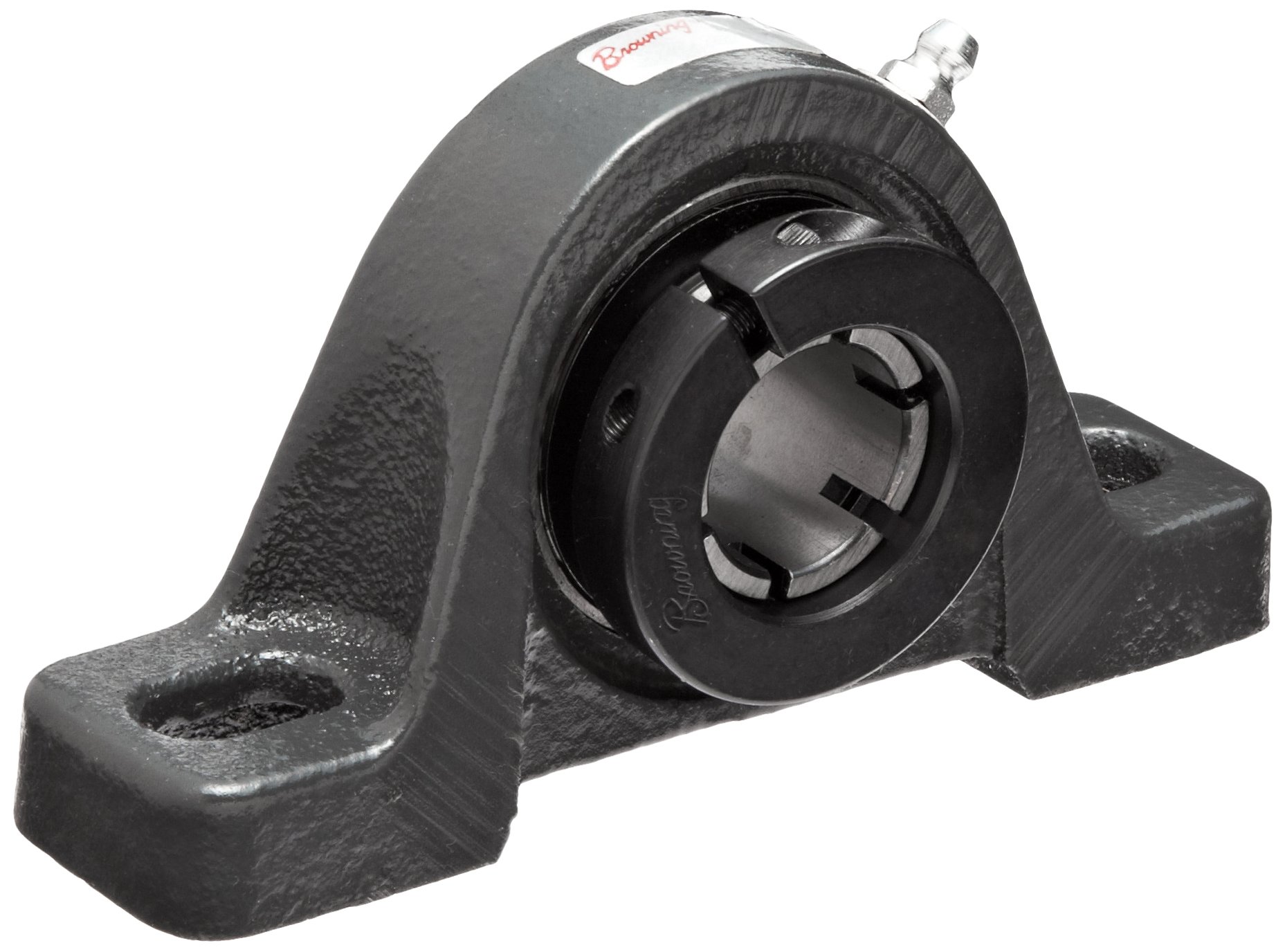

Browning VPB-223 Pillow Block Bearing 1-7/16" Bore 2-Bolt Cast Iron

The Browning VPB-223 is a 2-bolt pillow block ball bearing designed for reliable shaft support in industrial power transmission applications. This non-expansion type bearing unit features a 1-7/16" bore diameter with a BOA (Browning Offset Adjustable) concentric locking collar that provides secure shaft attachment without the need for set screws that can damage the shaft surface.

Key Specifications:

• Bore diameter: 1-7/16 inches
• Base to center height: 1-7/8 inches
• Bolt hole spacing width: 5 inches
• 2-bolt mounting configuration
• Cast iron housing for durability and heat dissipation
• Contact and flinger seal design protects against contaminants
• BOA concentric locking collar for easy installation and shaft protection

Features & Benefits:

• Non-expansion design maintains consistent bearing preload and eliminates the need for shaft shoulder or retaining ring
• Dual sealing system combines contact seal and flinger for enhanced protection in dirty environments
• Cast iron construction provides excellent wear resistance and dimensional stability
• Standard 2-bolt base allows for easy mounting and alignment
• BOA collar design enables quick installation and removal without marring shaft surface

Ideal for conveyors, agricultural equipment, fans, pumps, and general industrial machinery requiring reliable pillow block bearing support.
